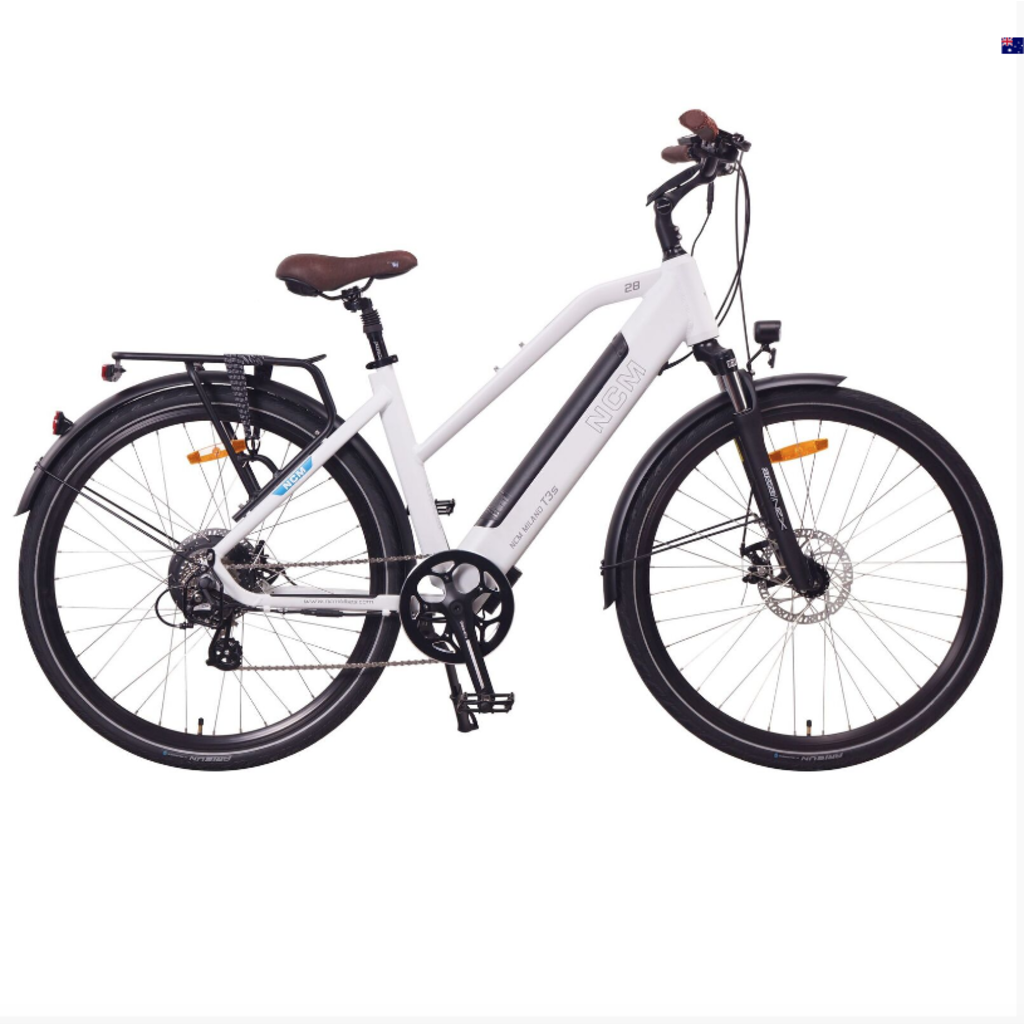

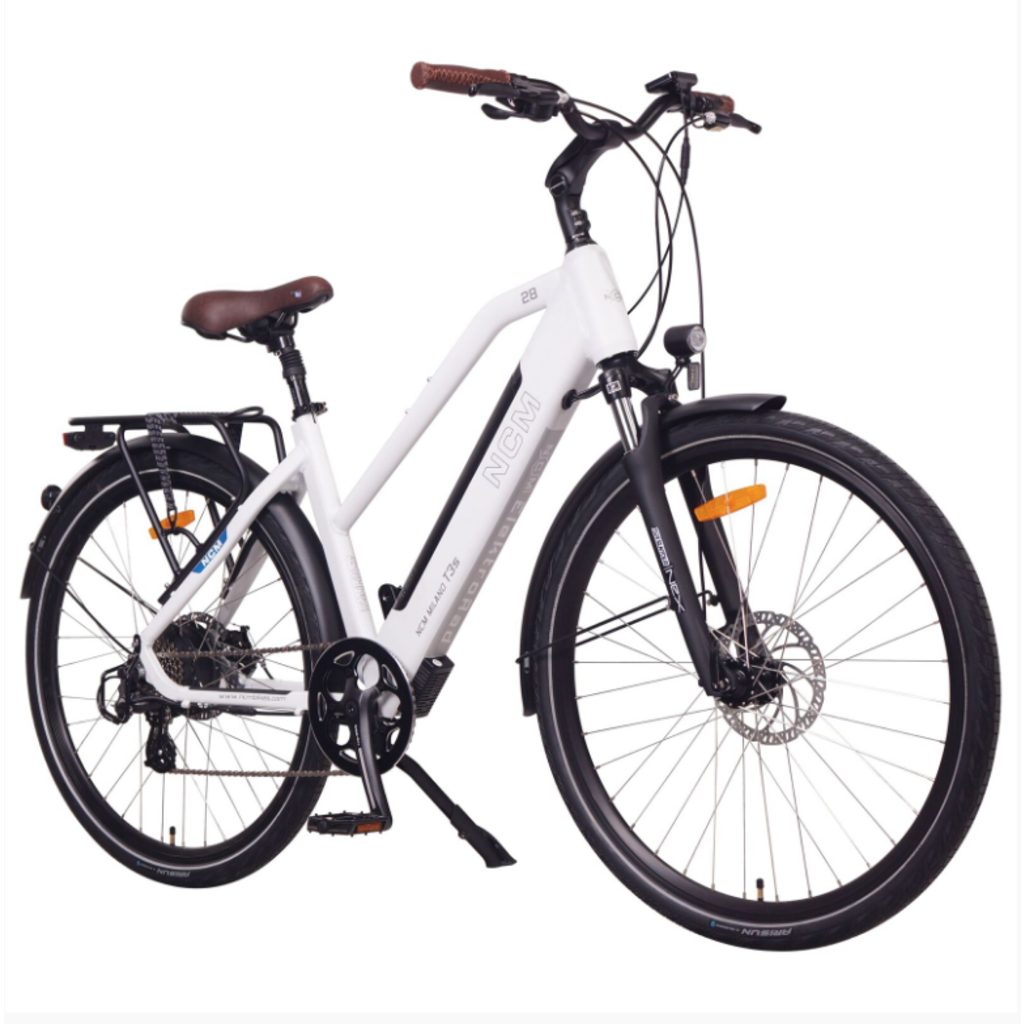

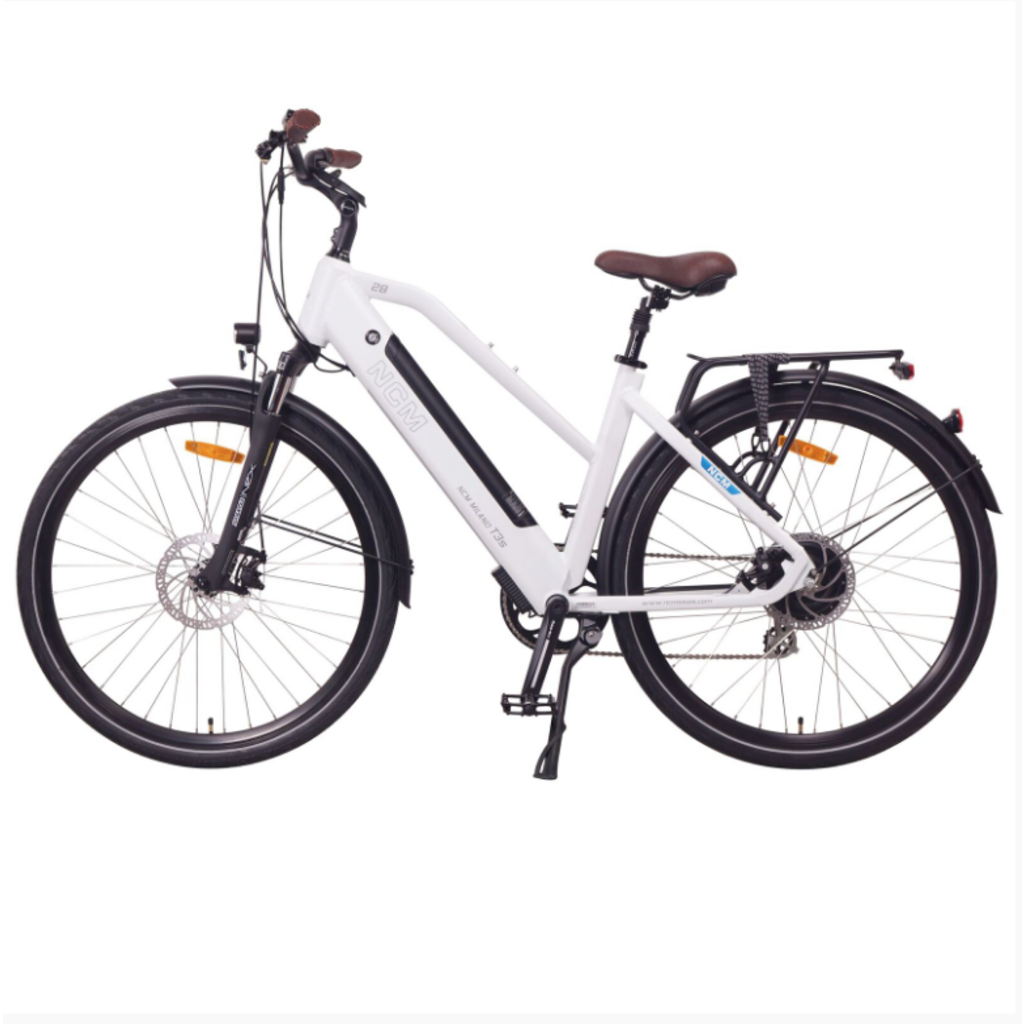

NCM Milano T3 Step Trekking E-Bike, City-Bike, 250W, 48V 12Ah 576Wh Battery

Specifications

General Information

• Weight: 26”= 27kg
• Type: E-Trekking
• Wheel size: 26” x 1.95
• Load capacity: Max. 125kg
• Maximum speed: 25km/h

ELECTRIC PARTS

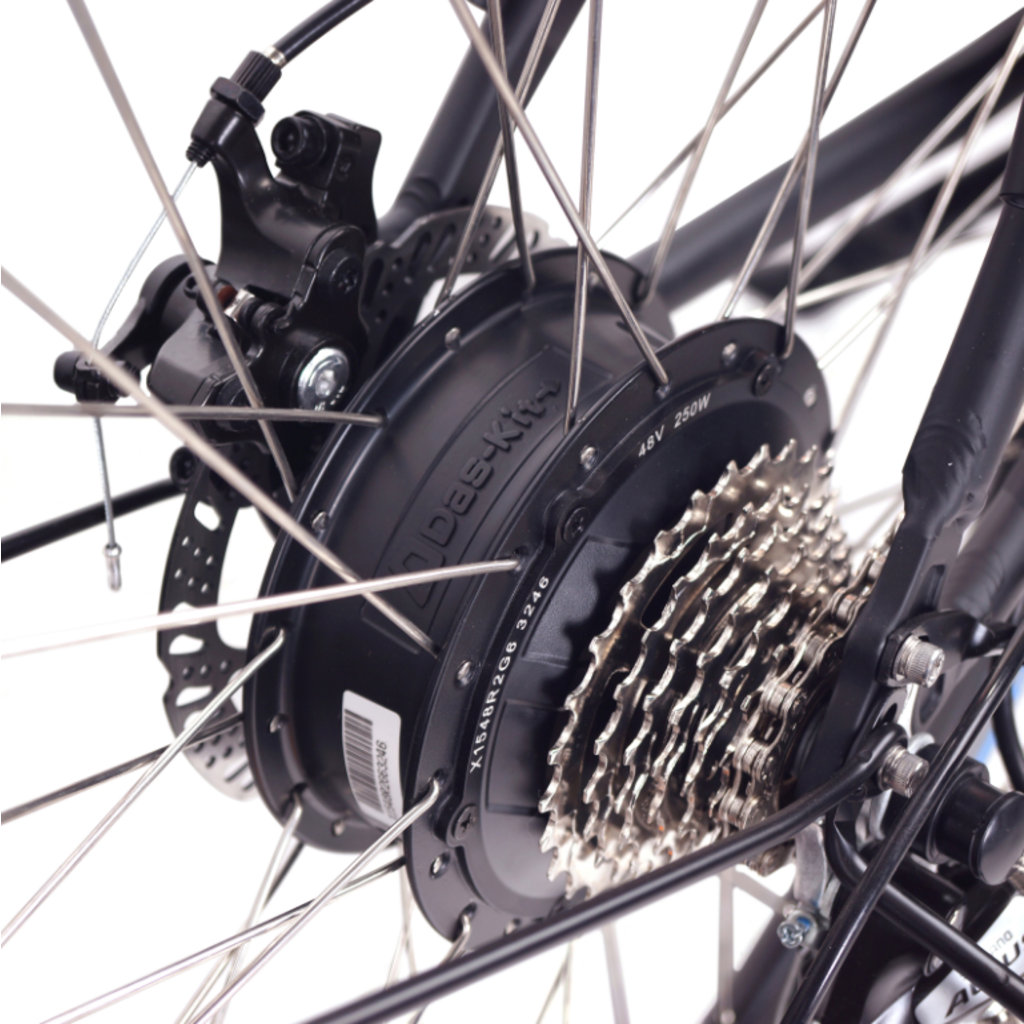

• Motor: Das-Kit, X15 Rear-drive motor, 48V 250W, 25km/h
• Controller: Das-Kit, CT5-I5, 48V 15A

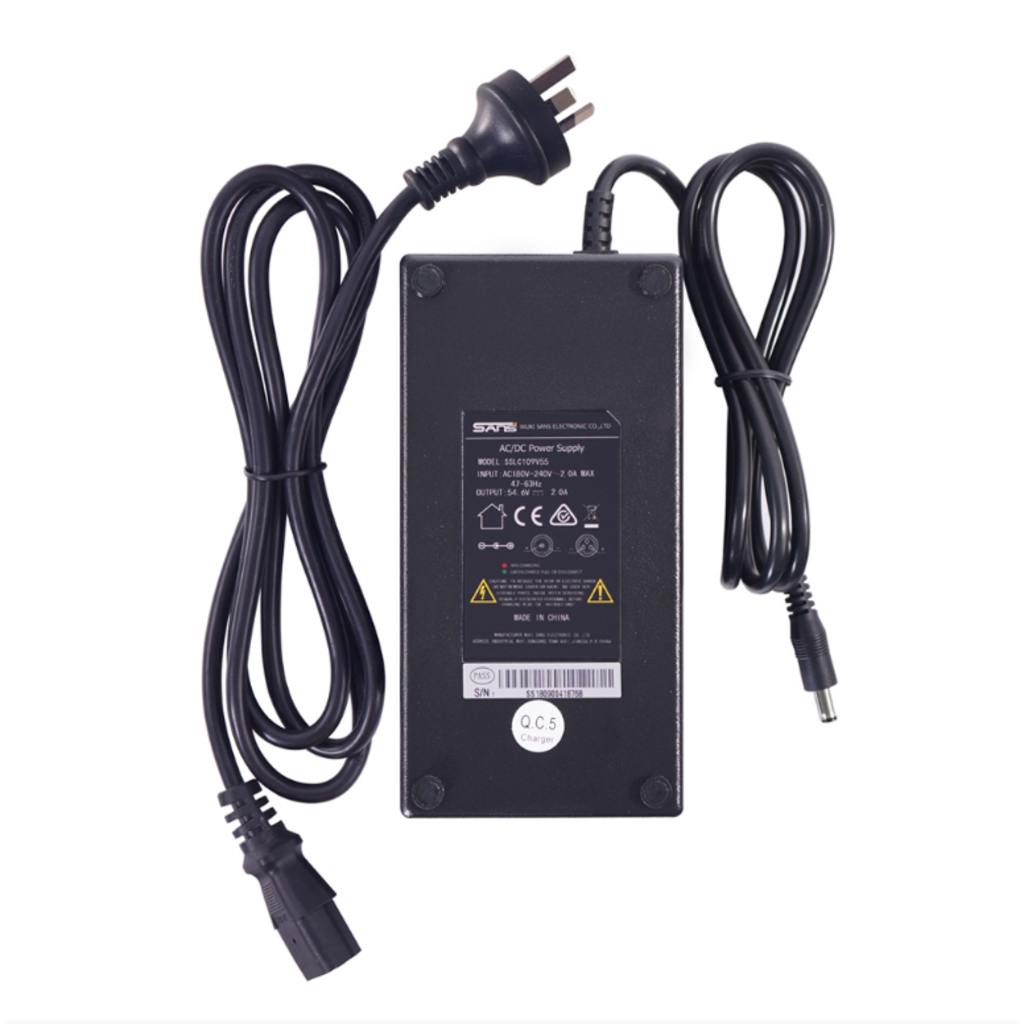

• Charger: 48V 2A included (round plug) DC482AU
• Battery: DEHAWK I5-4813H,48V 13AH, 624WH, with USB port
• Average range: 40-120km depending on assistance level

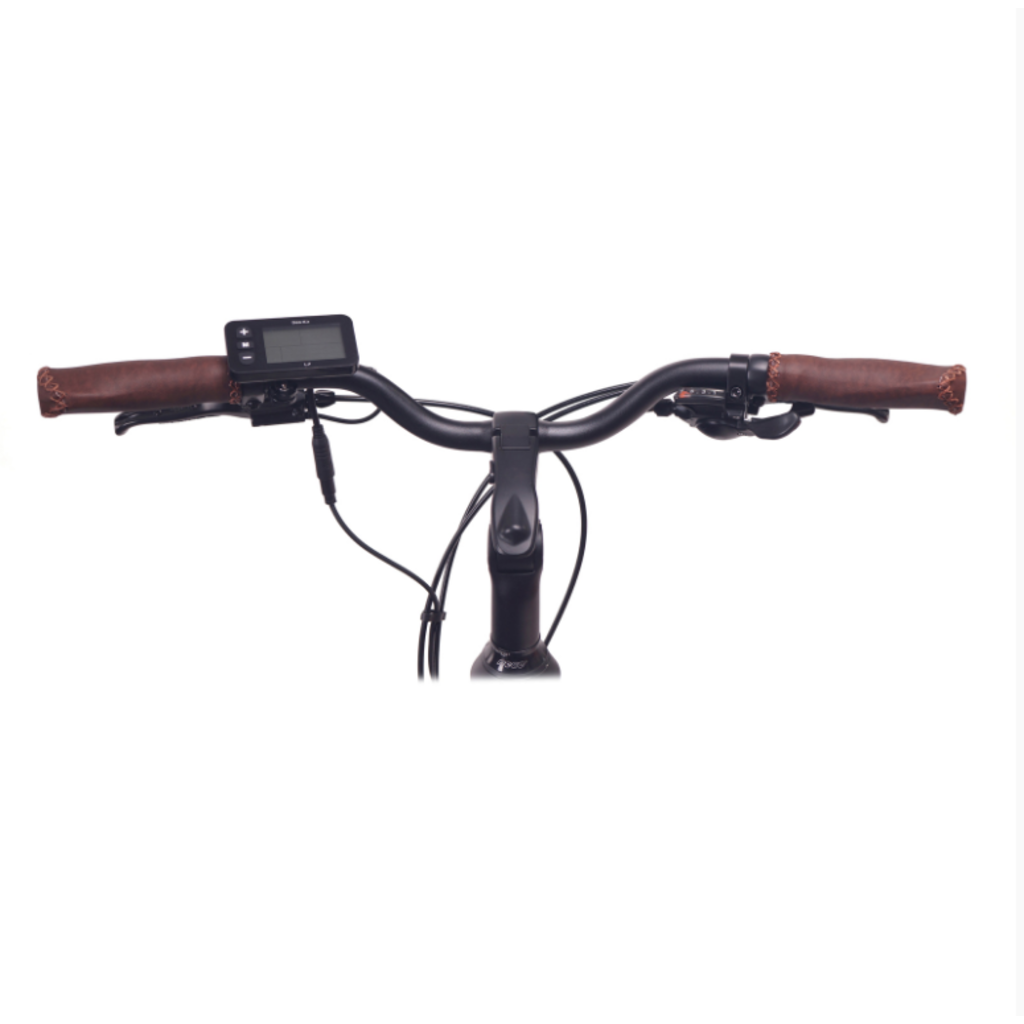

• Display: LCD Das-Kit L7 display with many functions, 6km/h walk assist

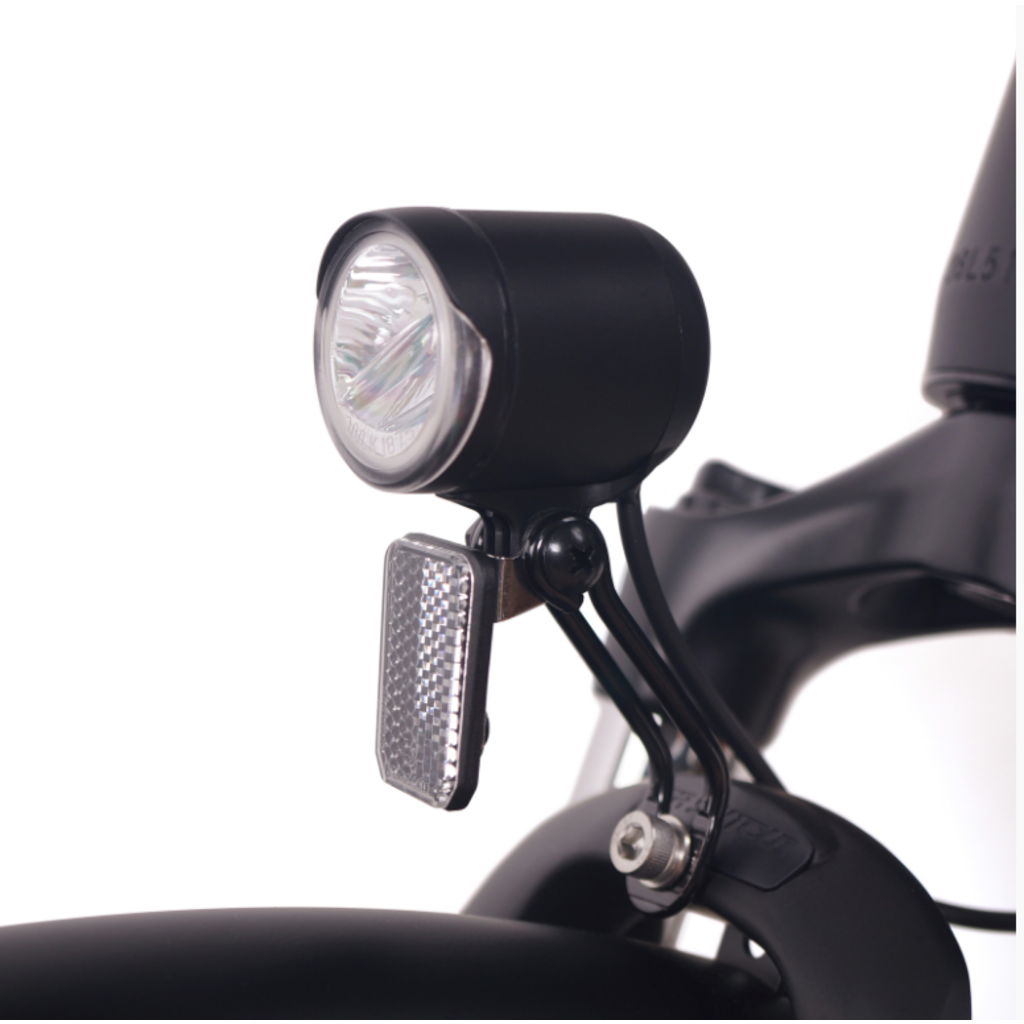

• Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga, / Solo, with 2xAA batteries

BIKE PARTS

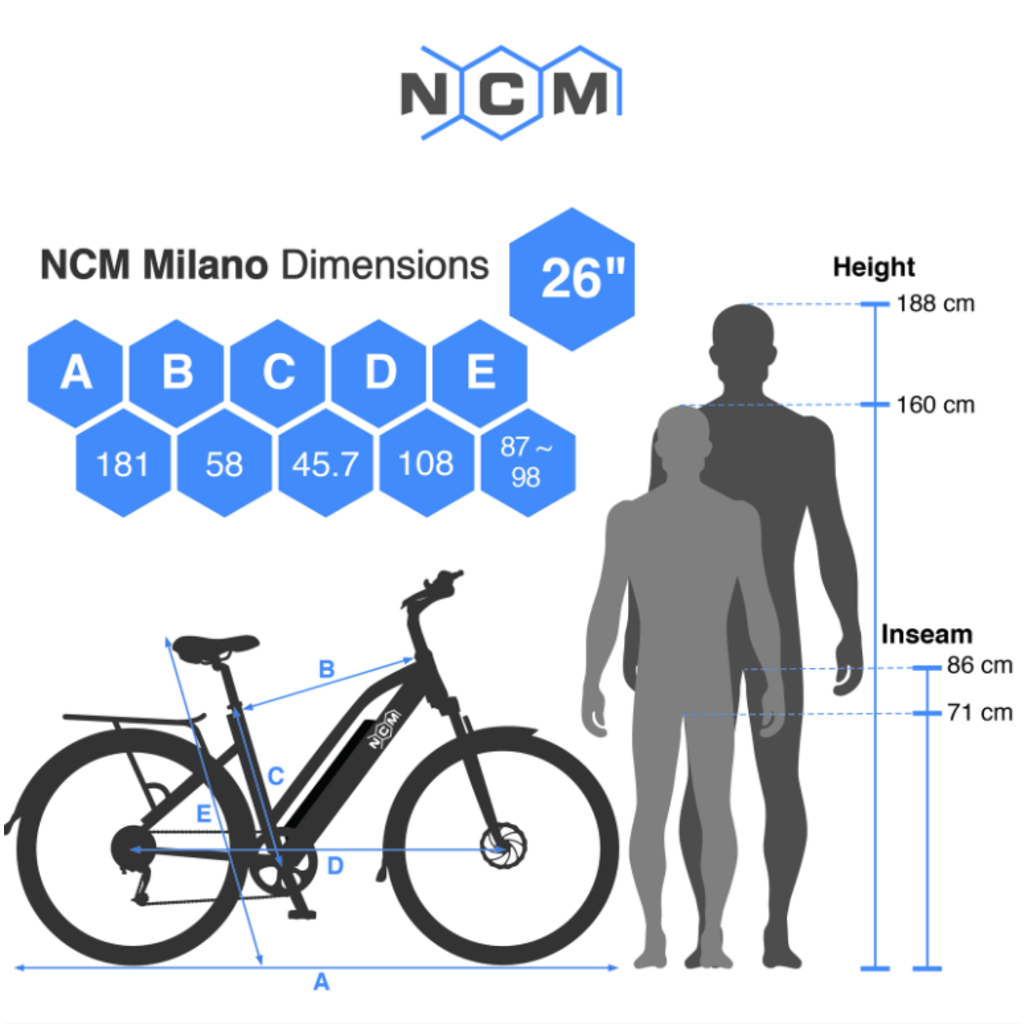

• Frame: Alu. 6061, 26"*457MM /28"*480MM
• Handelbar: Promax MA579 adjustable
• Fork: Suntour, NEX 26” / 28”
• Brake Levers: Tektro, left with brake sensor

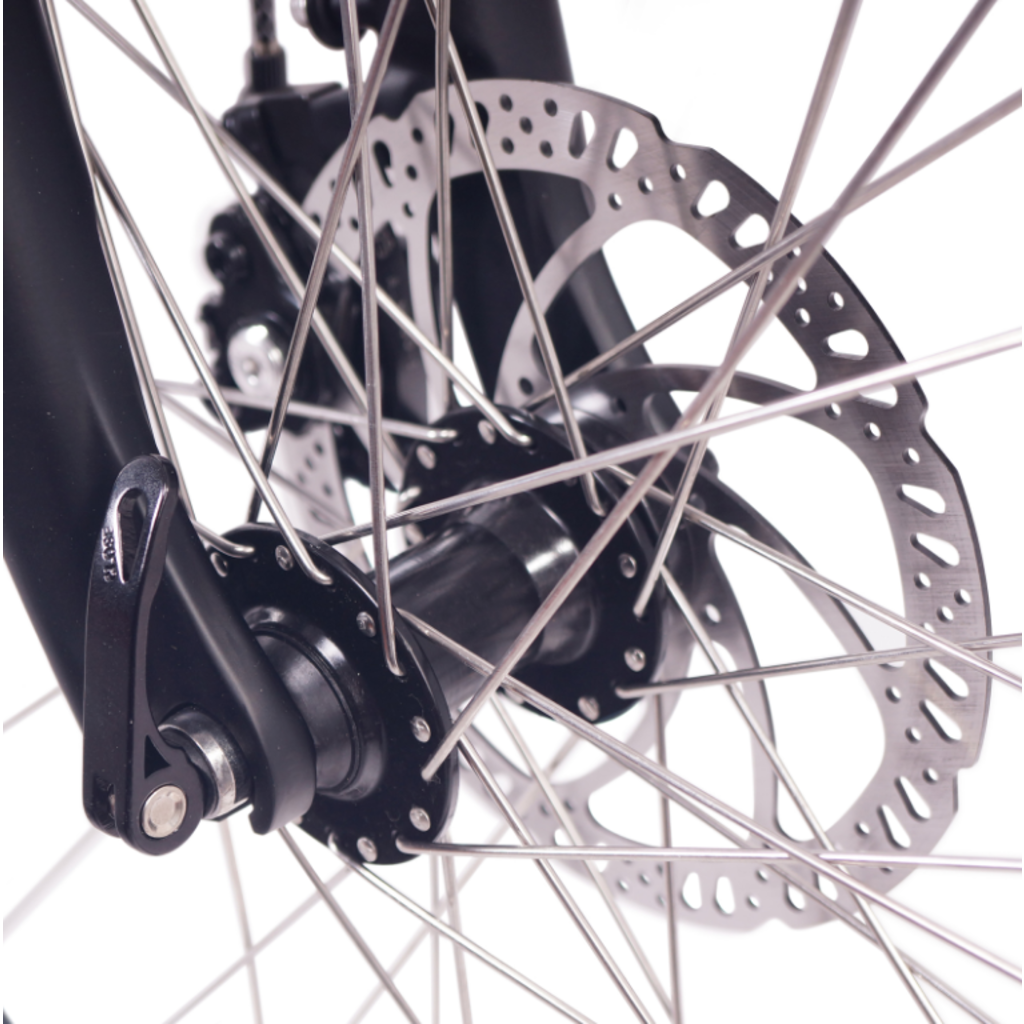

• Brakes F/R: Tektro Mechanical Disc Brakes, MD-M280

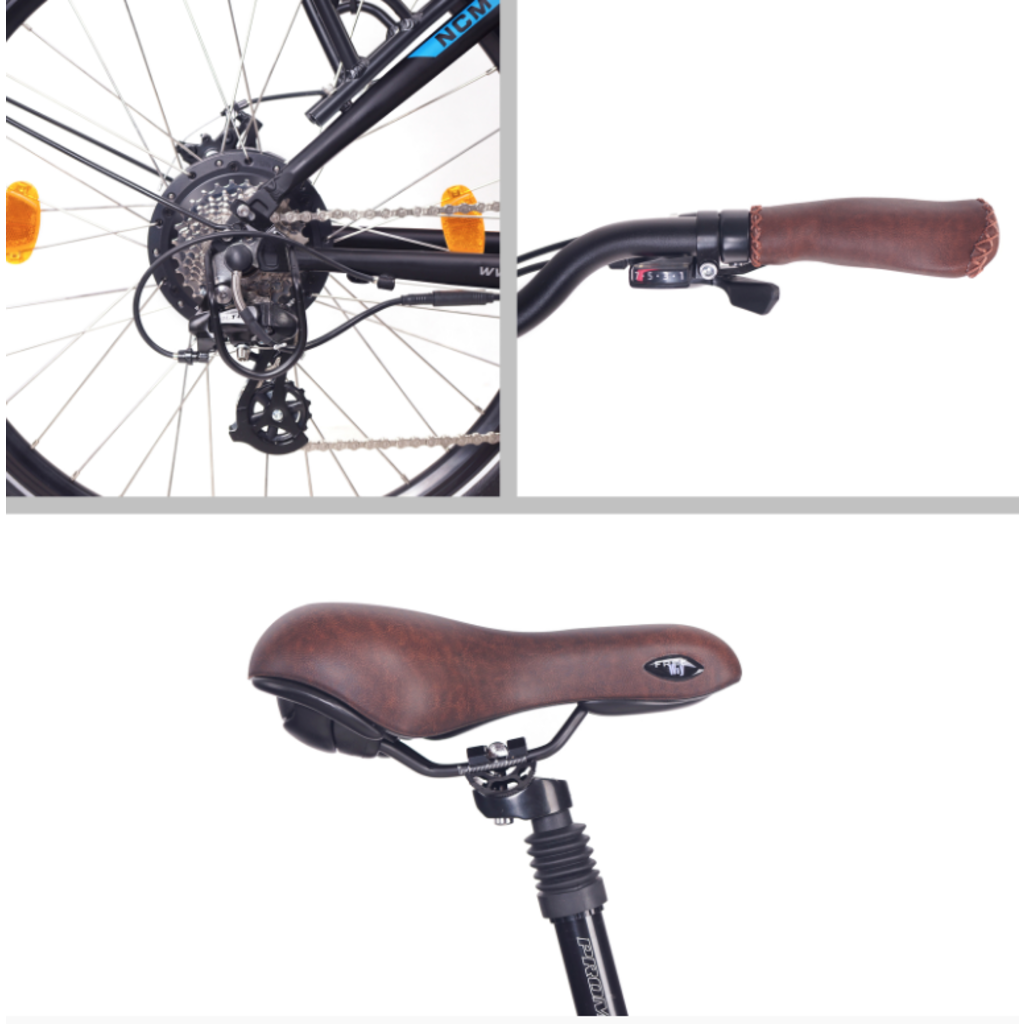

• Chain derailleur: Shimano, Altus M310, 7 speed
• Crank set: Prowheel, OUNCE-248AC, 48T
• Gear shift: Shimano, Altus M310, 7 speed
• Pinion: 7-speed screw ring, 14-28T
• Tyre: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black
• Saddle: Selle Royal, gel saddle, brown (imitation leather)
• Seatpost: Promax, SP-884, with suspension, 27.2*300MM
• Handles: Selle Royal, brown (imitation leather)
• Pedals: Wellgo, B087, black

Warranty

• 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• 2 year warranty on the bike frame
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
