Where it thrives
The open road, up & down hills, rough pavement
What it's built for
Comfort, handling, going long
Highlights
- Lightweight Synapse Carbon Frameset / Integrated Cannondale App connectivity / SmartSense compatible
- Shimano Tiagra 10-speed group with FSA cranks
- Shimano Tiagra hydraulic disc brakes
SPECIFICATIONS
Details
Platform
Synapse Carbon
Model Name

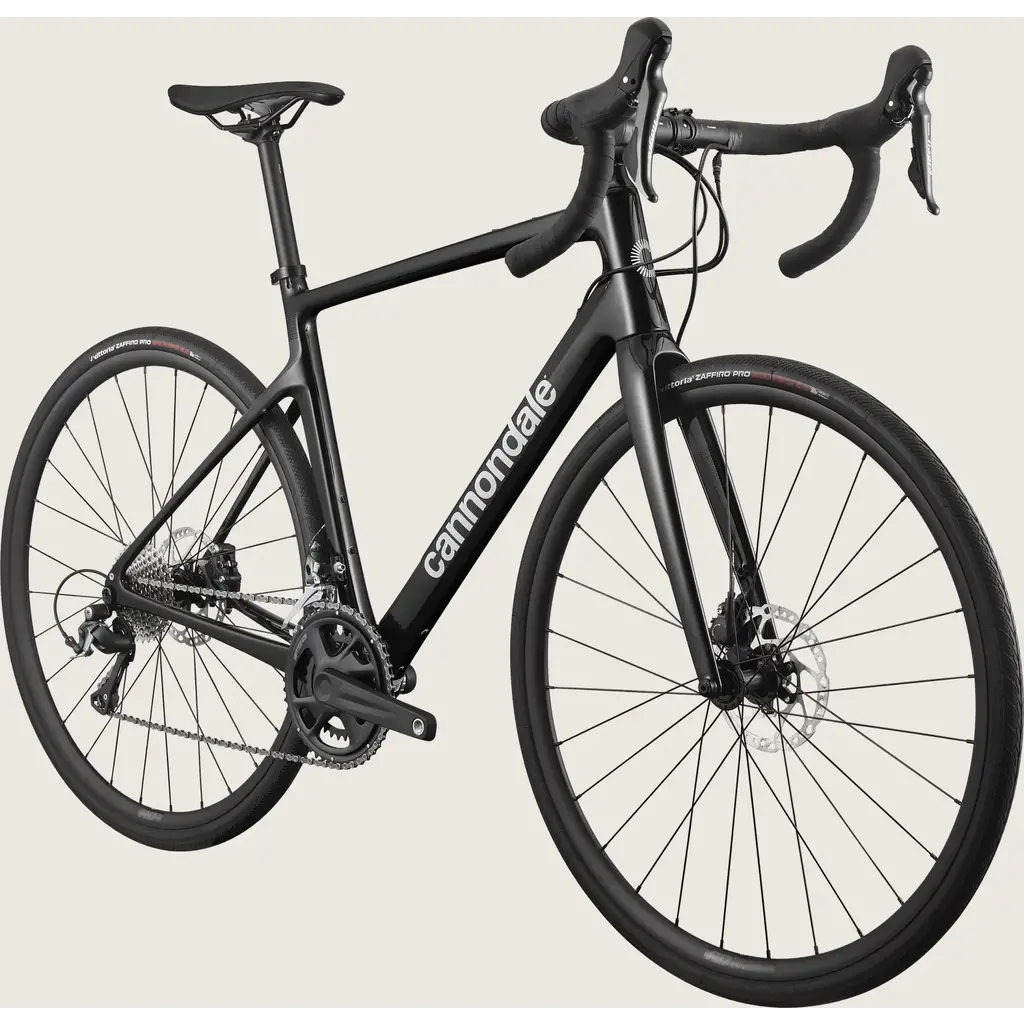

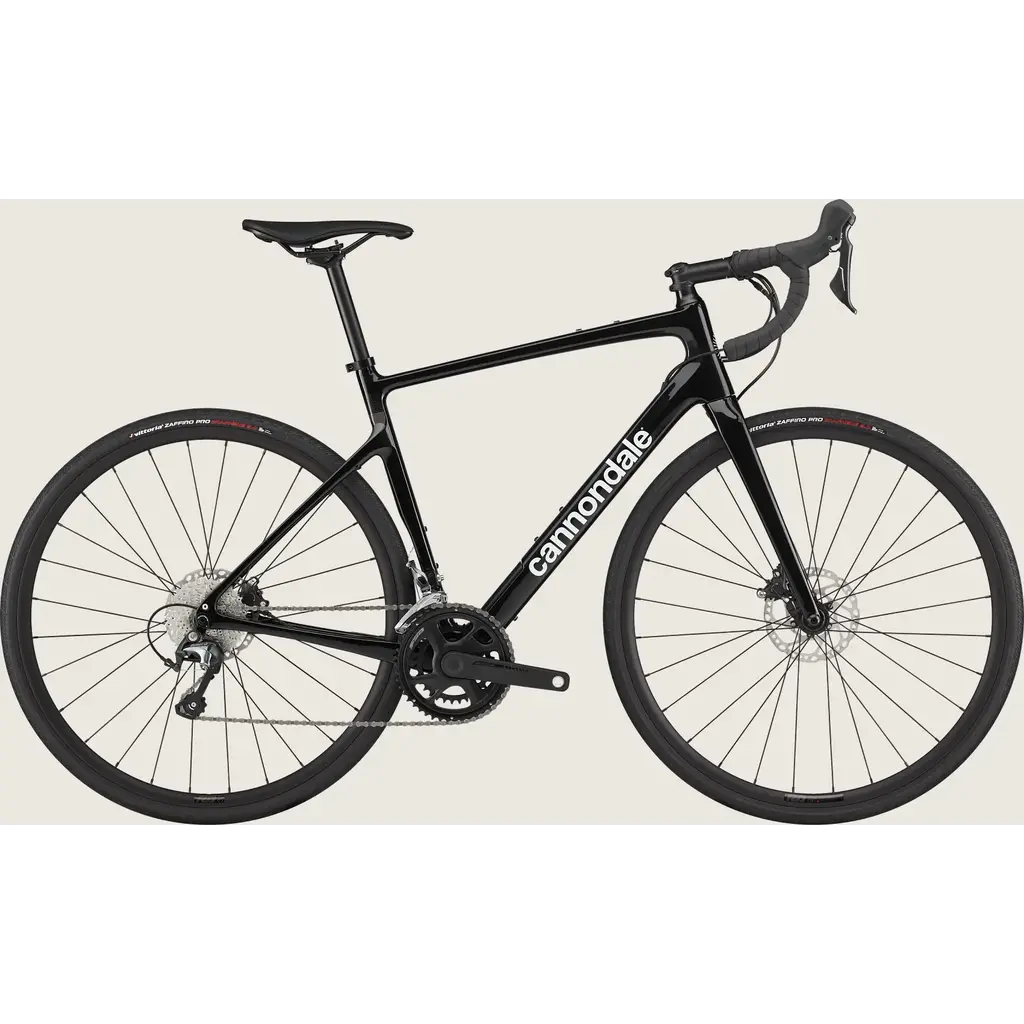

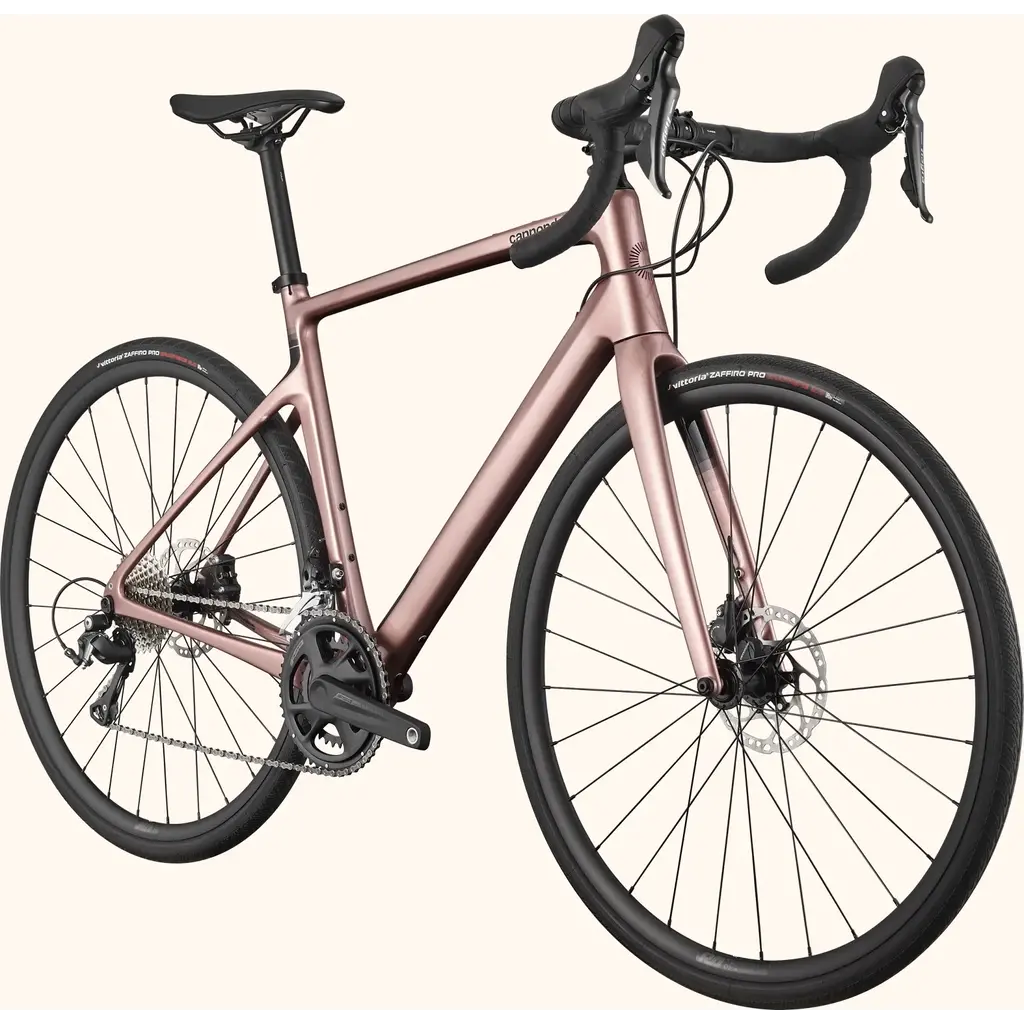

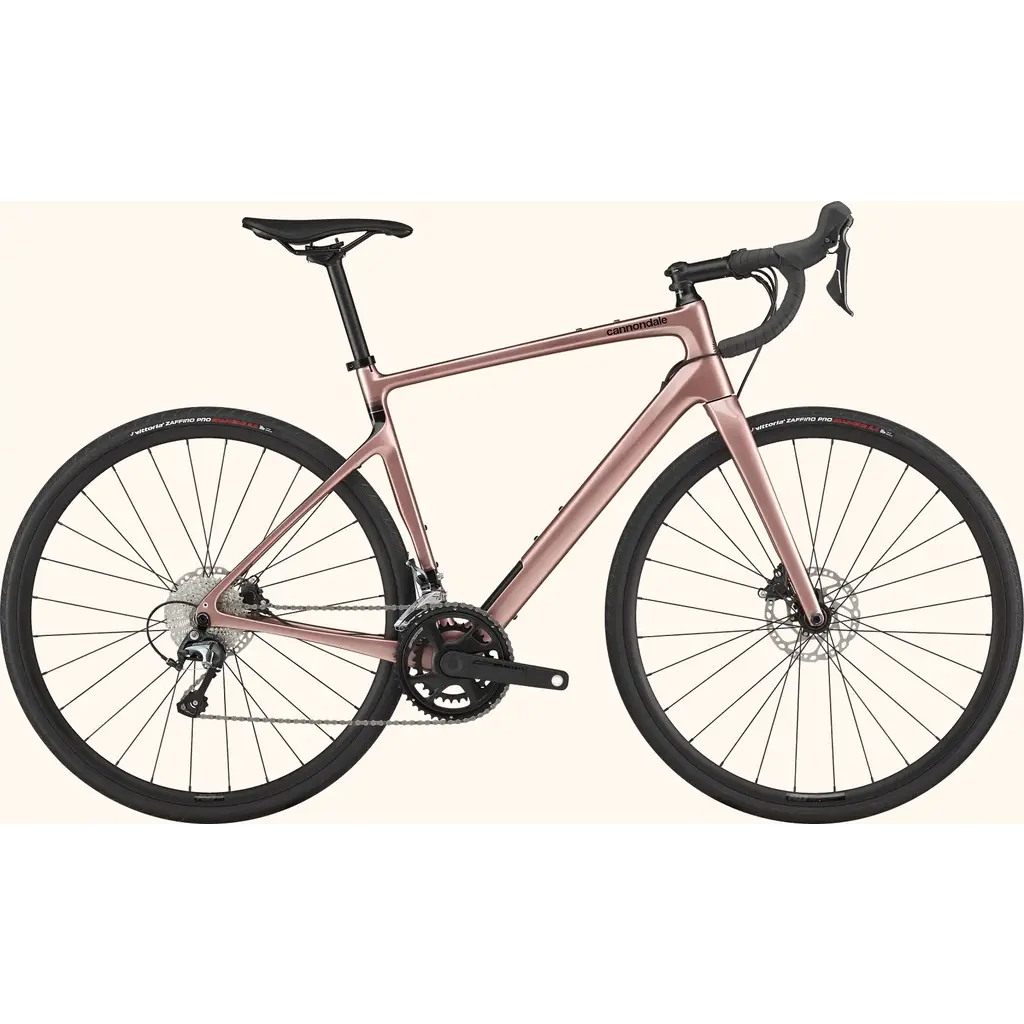

Synapse Carbon 4
Model Code
C12402U
Frameset
Frame
Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Fork
Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
Headset
Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
Drivetrain

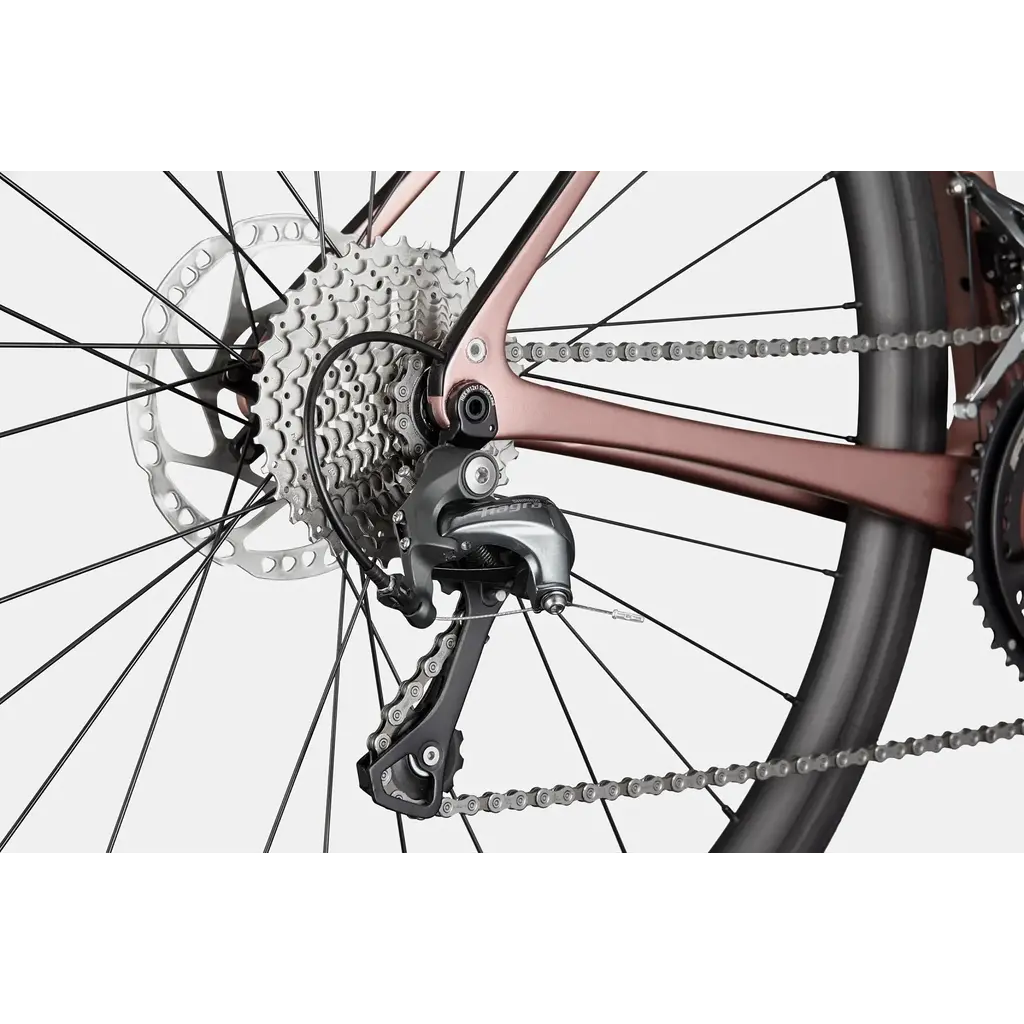

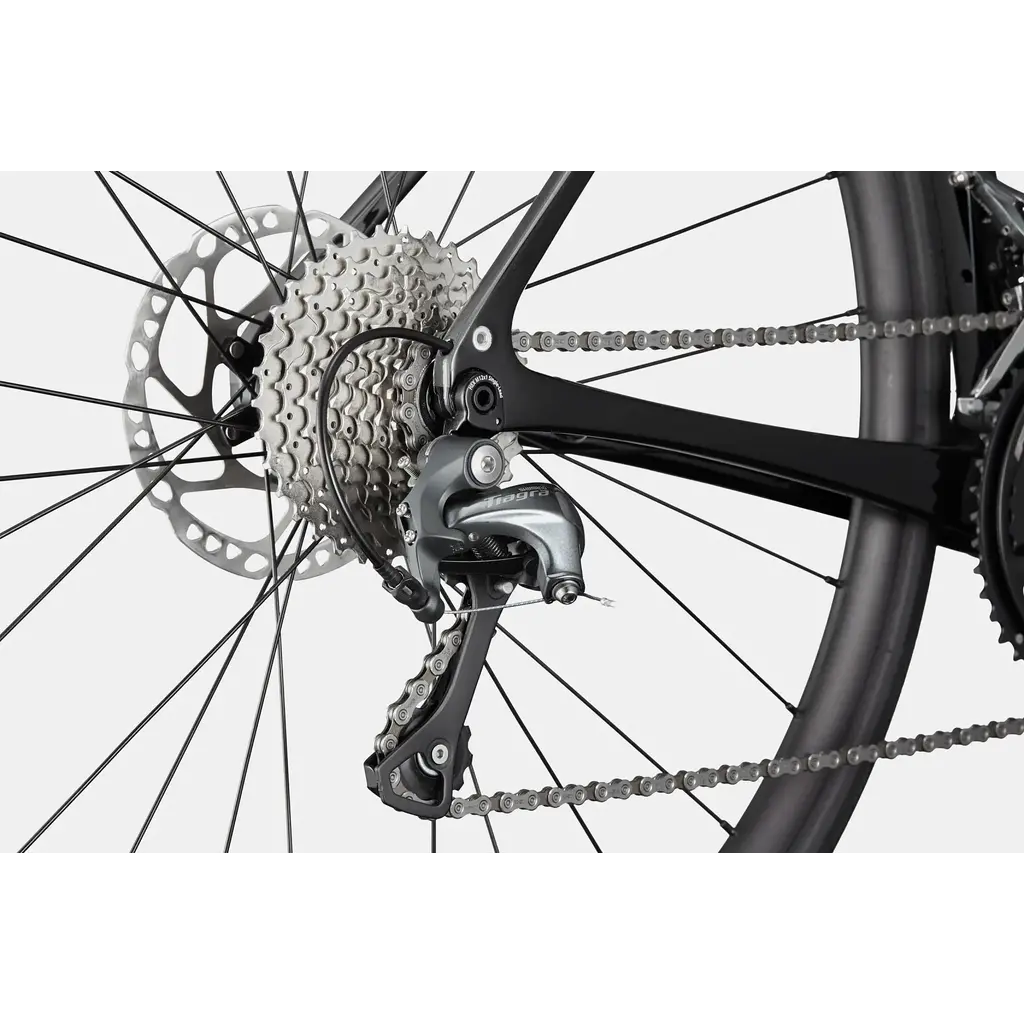

Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, braze-on
Shifters
Shimano Tiagra hydraulic disc, 10-speed
Chain
Shimano HG54, 10-speed

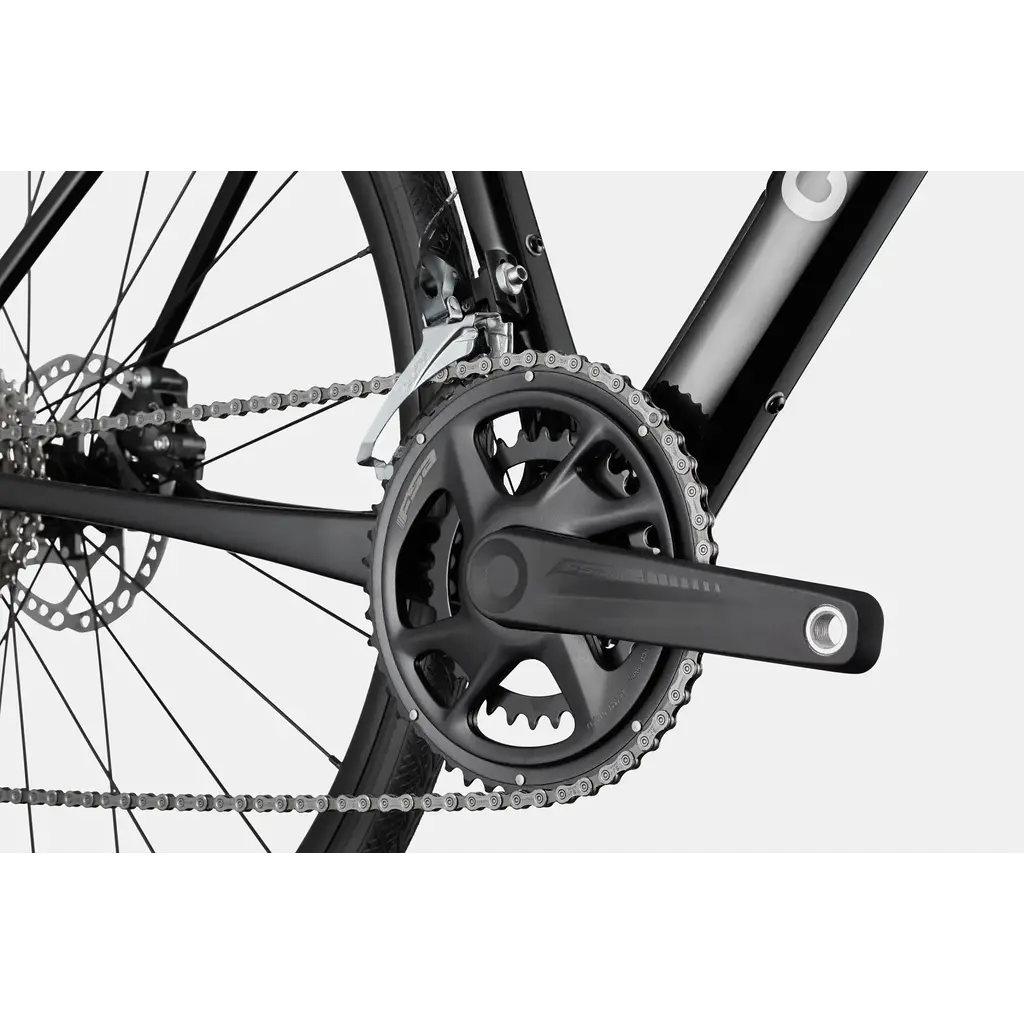

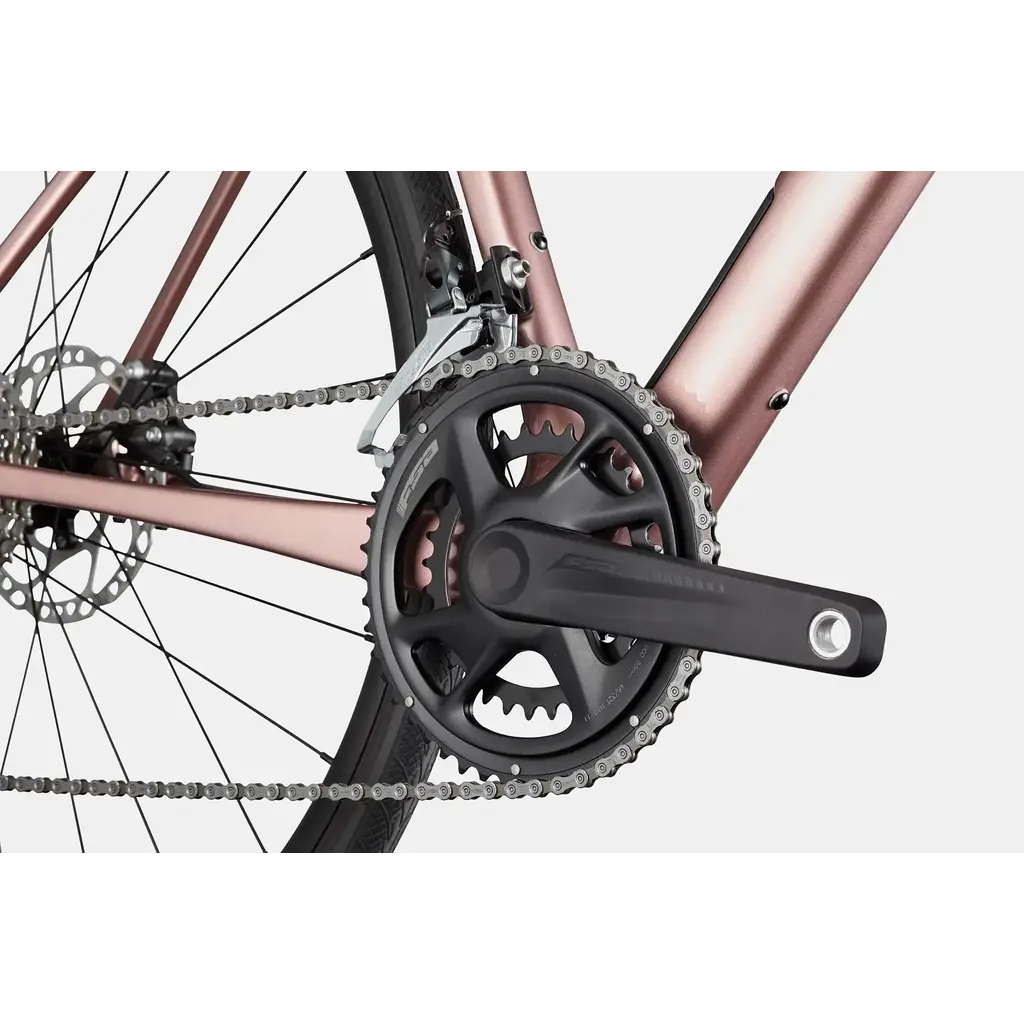

Crank
FSA Omega Alloy, 50/34 with FSA MegaExo BB
Rear Cogs
Shimano Tiagra, 11-34, 10-speed
Bottom Bracket
Shimano BSA
Brakes
Brakes
Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano Tiagra hydraulic
Wheels
Rims
RD 3.1, 28h, 21mm inner width
Spokes
Stainless Steel, 14g
Tire Size
30
Wheel Size
700c
Hubs
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Tires
Vittoria Zaffiro Pro Reflective, 700x30c
Front Tire
Vittoria Zaffiro Pro Reflective, 700x30c
Rear Tire
Vittoria Zaffiro Pro Reflective, 700x30c
Components

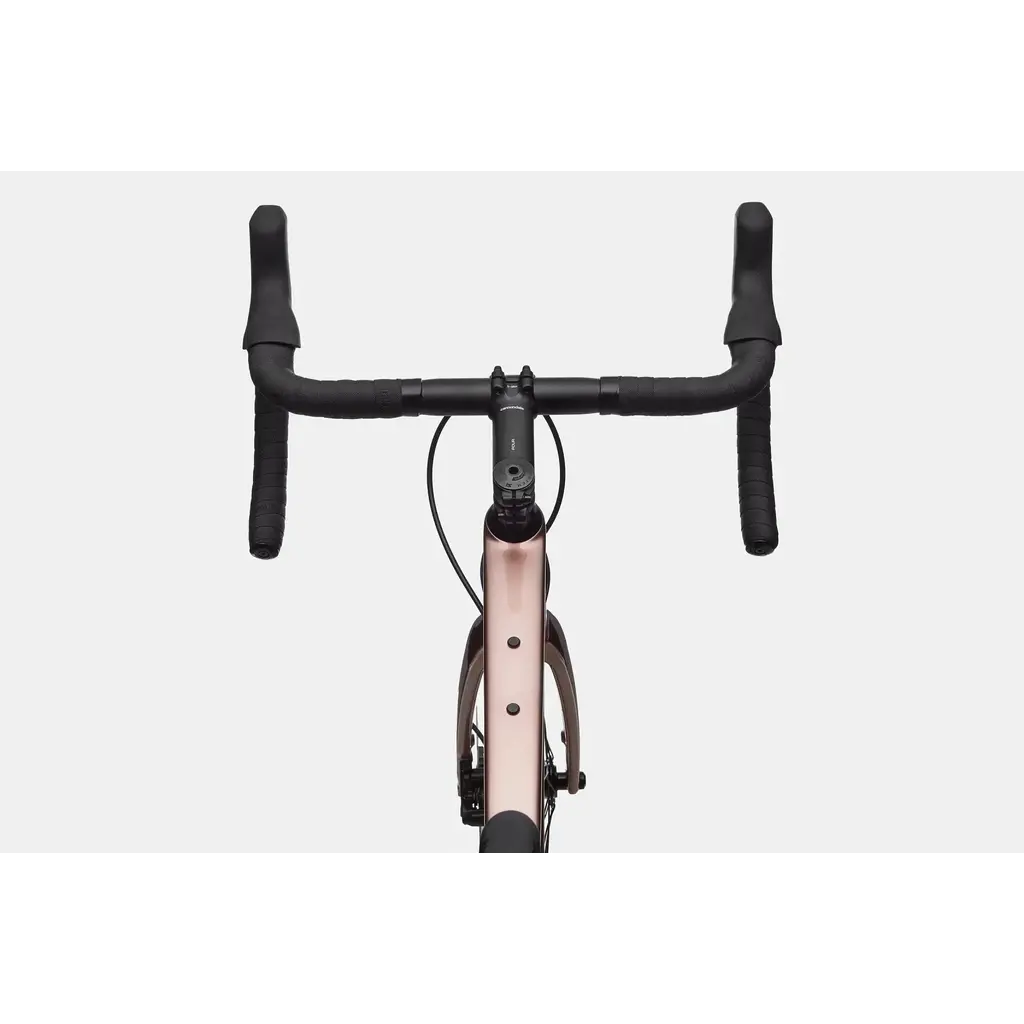

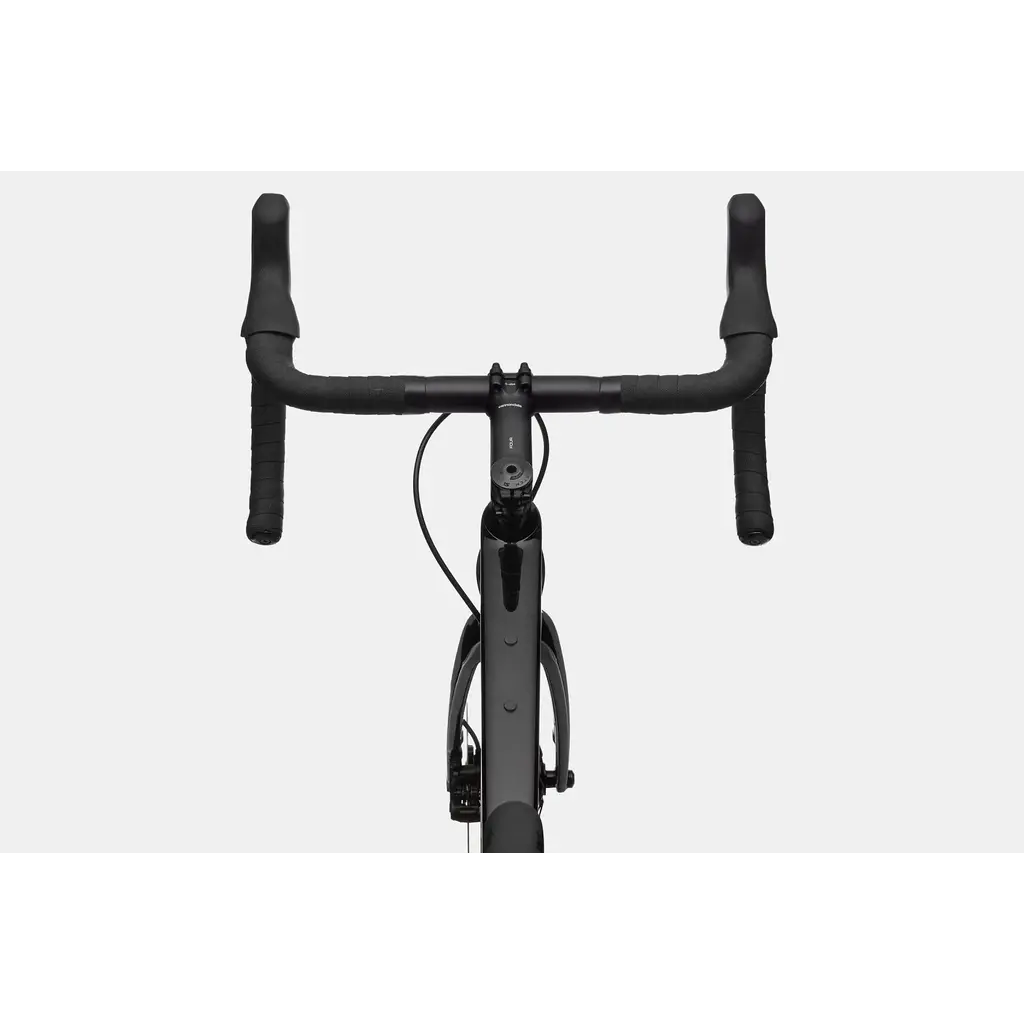

Handlebar
Cannondale 3, 6061 Alloy, Compact
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Grips
Fabric Knurl Bar Tape
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm (48-56), 400mm (58-61)
Connectivity
Wheel Sensor
Cannondale Wheel Sensor
Extra
Extra 1
Trainer Compatible Thru-Axle
