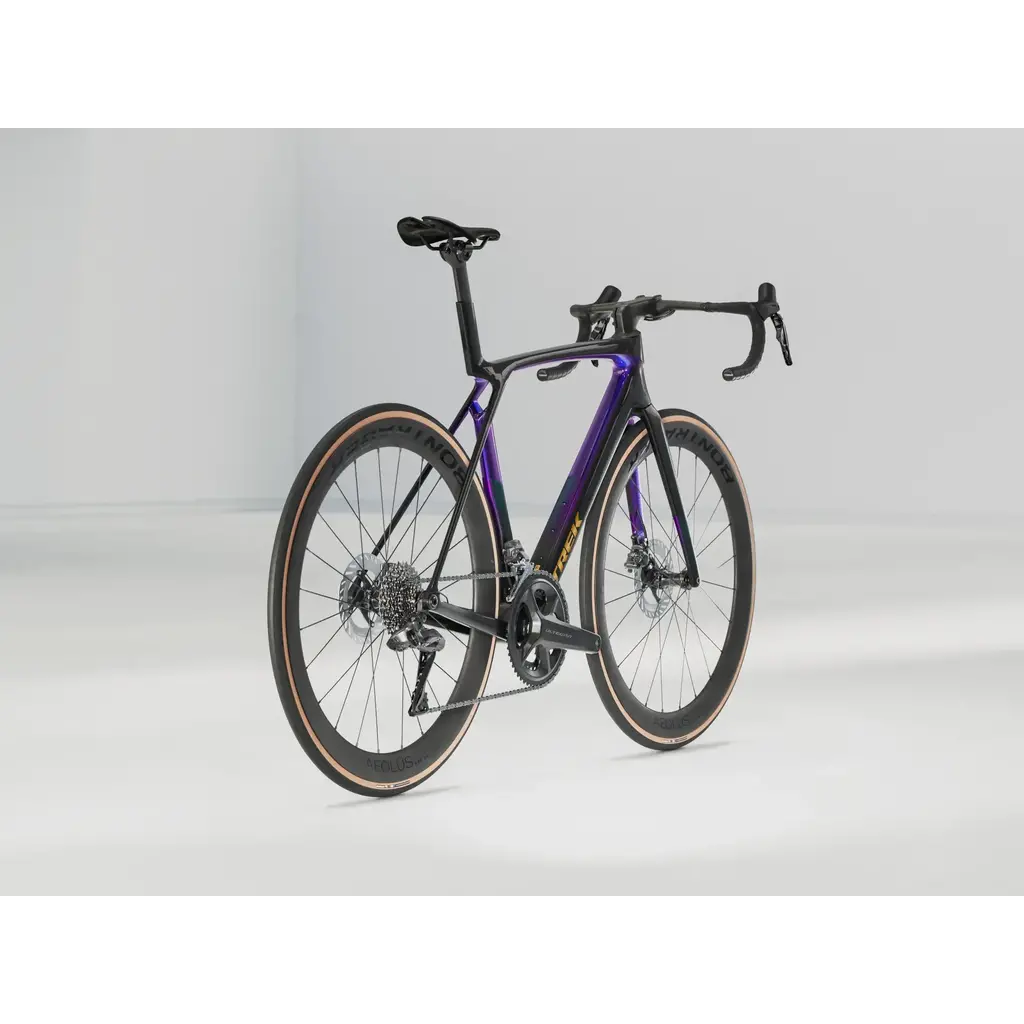

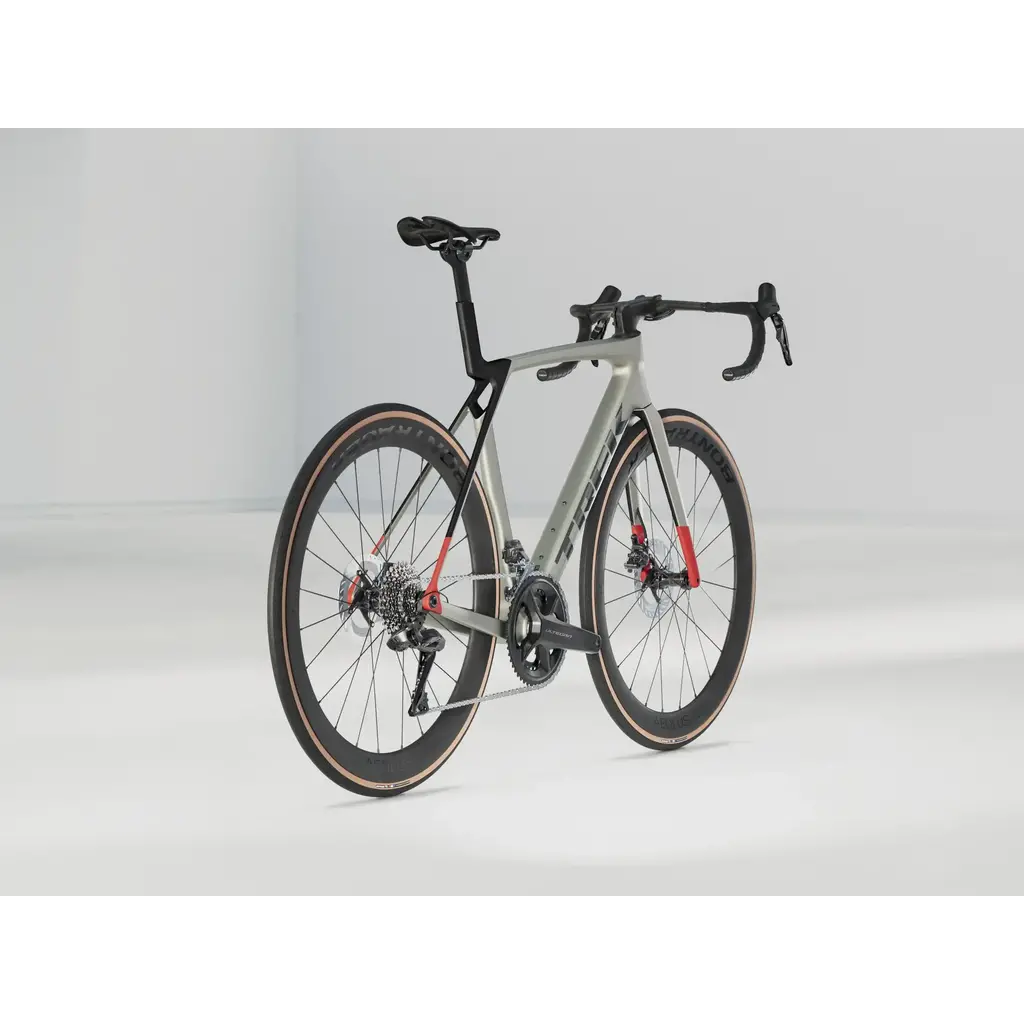

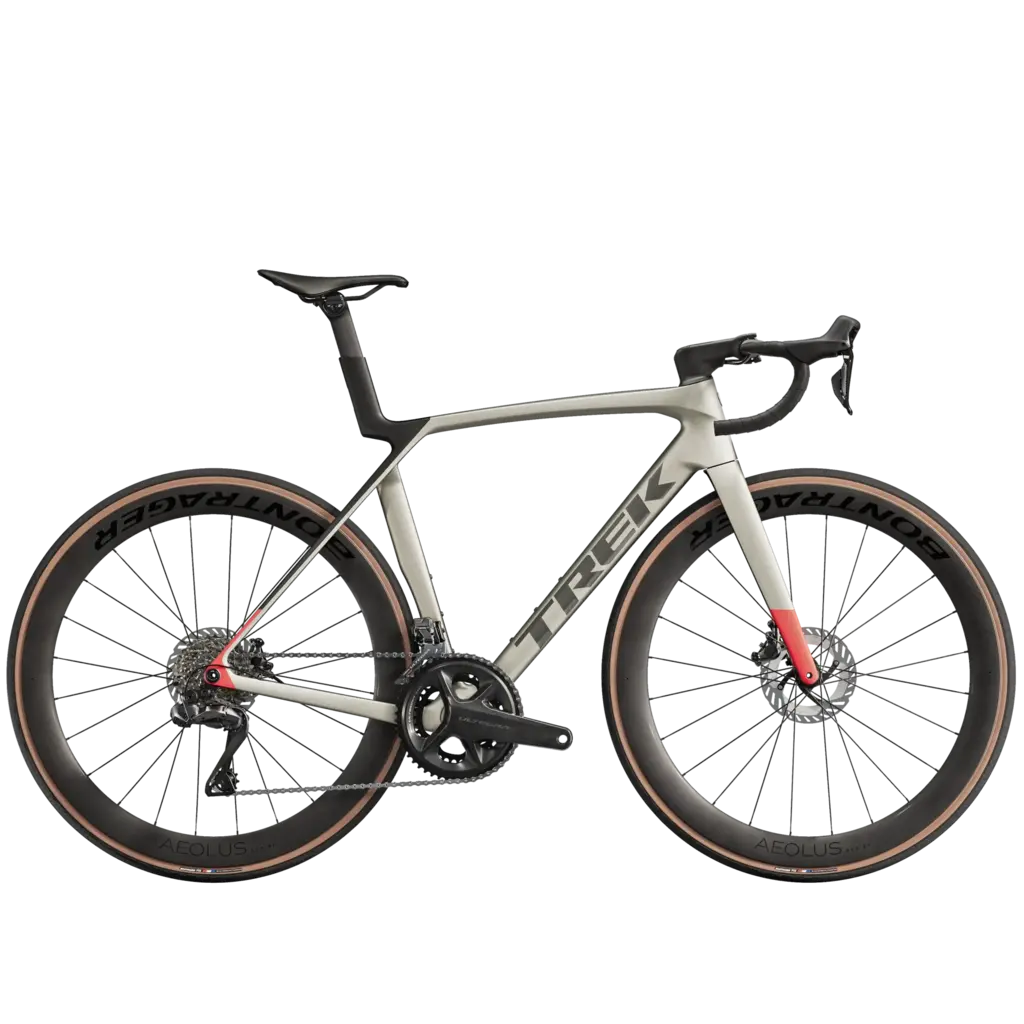

The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. Its featherweight build lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles. To give you the best balance of price and performance, it's built with 500 Series OCLV carbon, a two-piece handlebar and stem, and Shimano Ultegra Di2 wireless electronic drivetrain that delivers clean shifts every time, all topped off with carbon wheels for extra lightweight performance.
*Please note – spec applies to all sizes unless listed separately

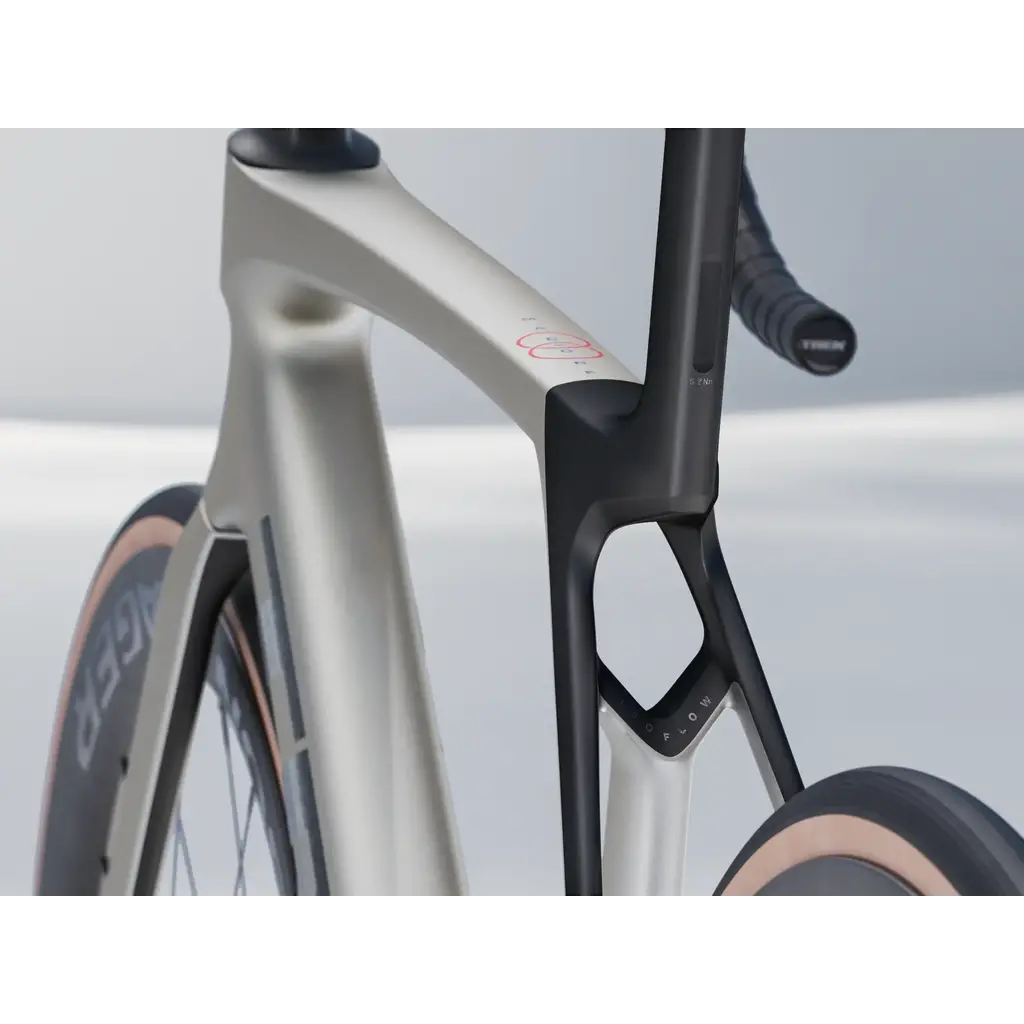

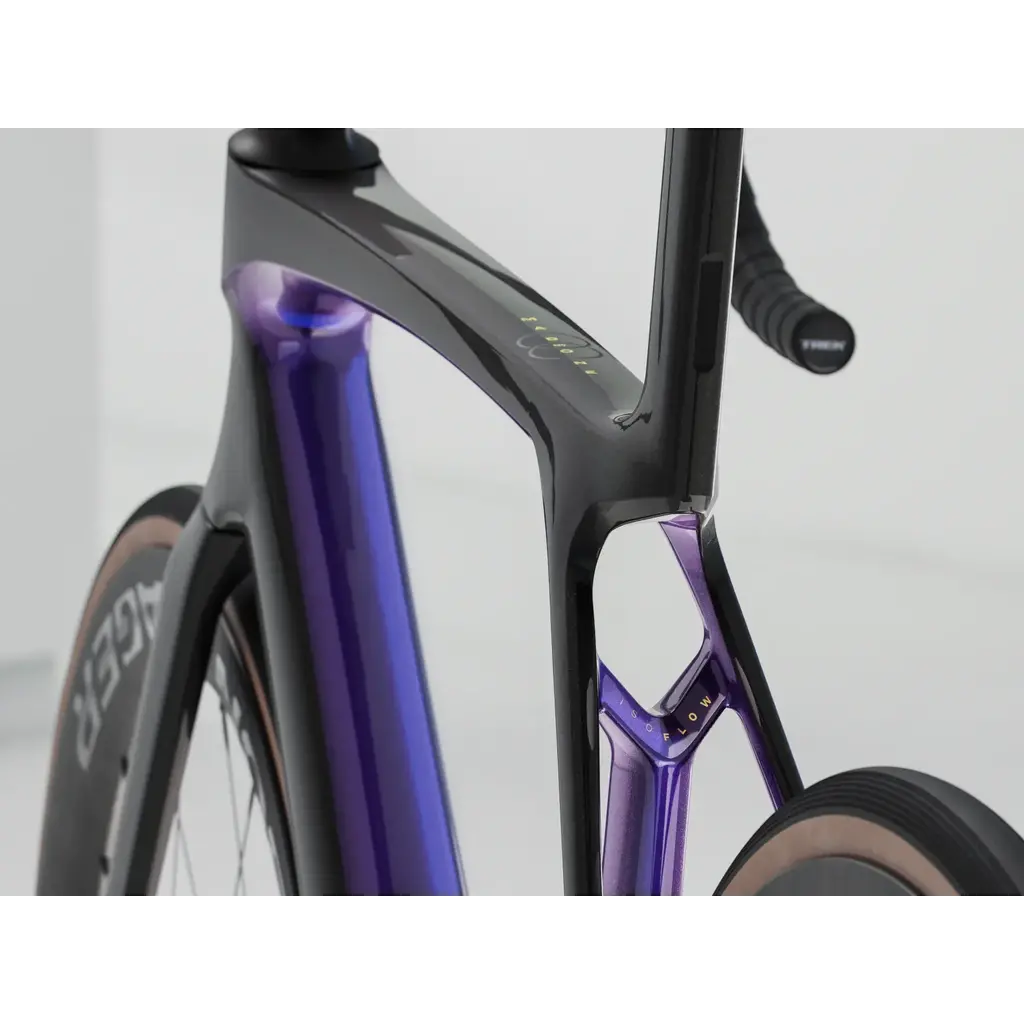

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 7.88 kg / 17.38 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |

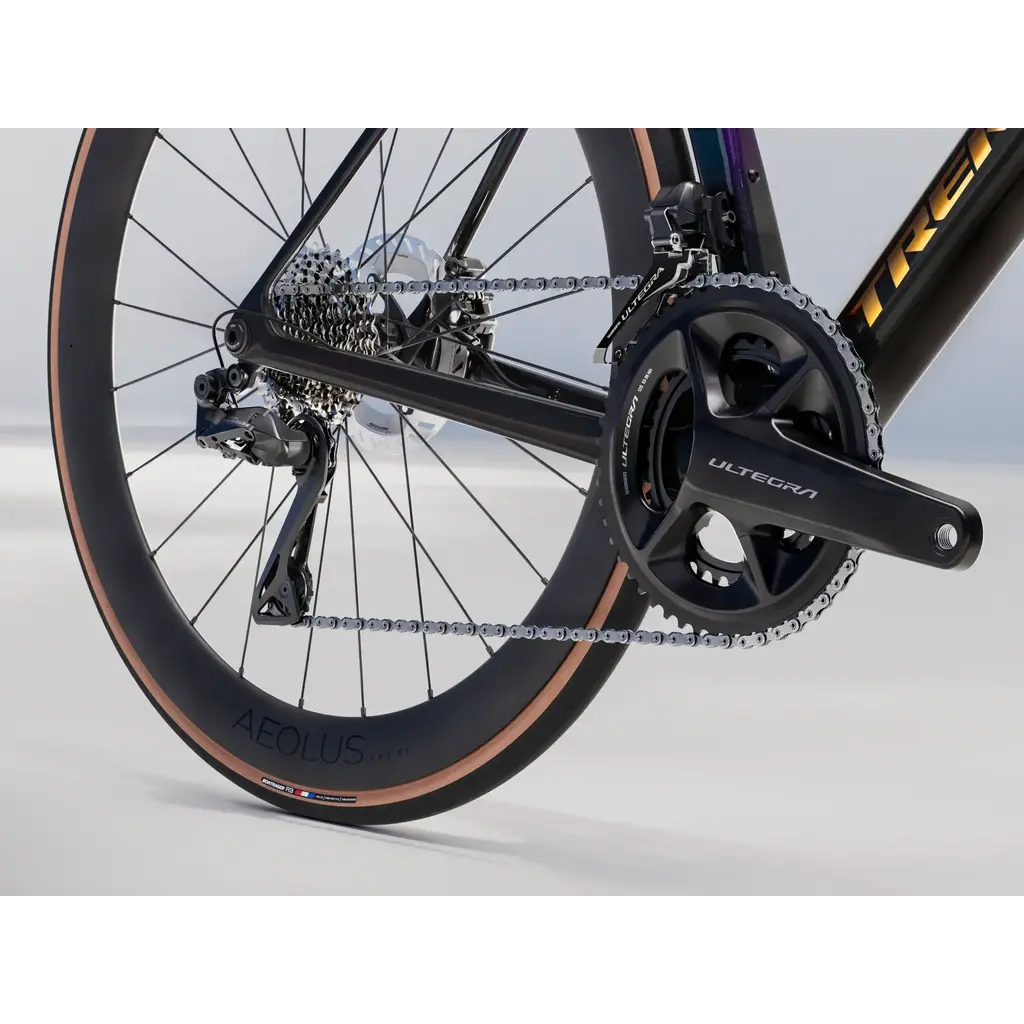

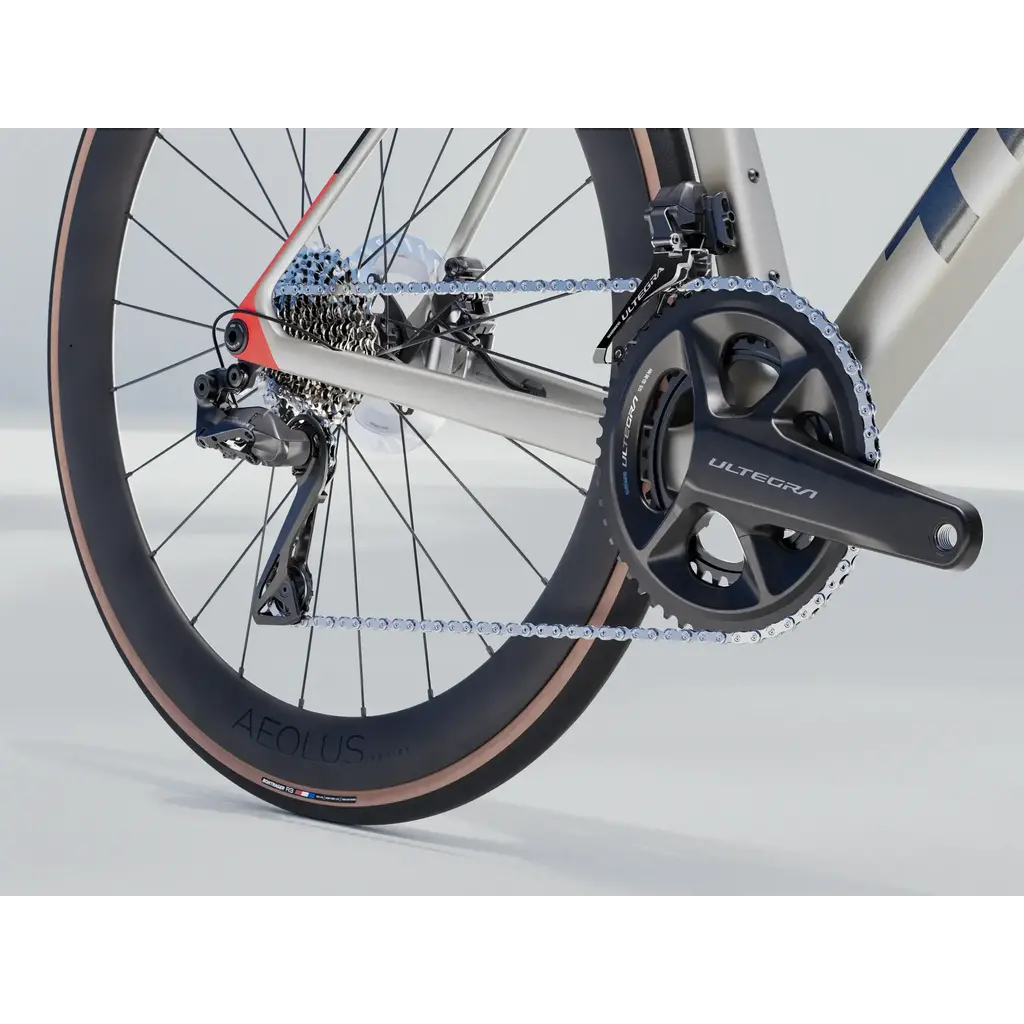

| Shifter | Shimano Ultegra R8170 Di2, 12-speed |
|---|---|
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| *Crank | Size: XS, S Shimano Ultegra R8100, 50/34, 165 mm length |
| Size: M Shimano Ultegra R8100, 50/34, 170 mm length |
|
| Size: ML, L Shimano Ultegra R8100, 50/34, 172.5 mm length |
|
| Size: XL Shimano Ultegra R8100, 50/34, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra R8101, 11-34, 12-speed |
| Chain | Shimano Ultegra/XT M8100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | 32 mm (as measured, see manual for details) |
| *Saddle | Size: XS, S Bontrager Aeolus P2 Elite, 155 mm width |
|---|---|
| Size: M, ML, L, XL Bontrager Aeolus Elite, austenite rails, 145 mm width |
|
| *Seatpost | Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length |
| Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length |
|

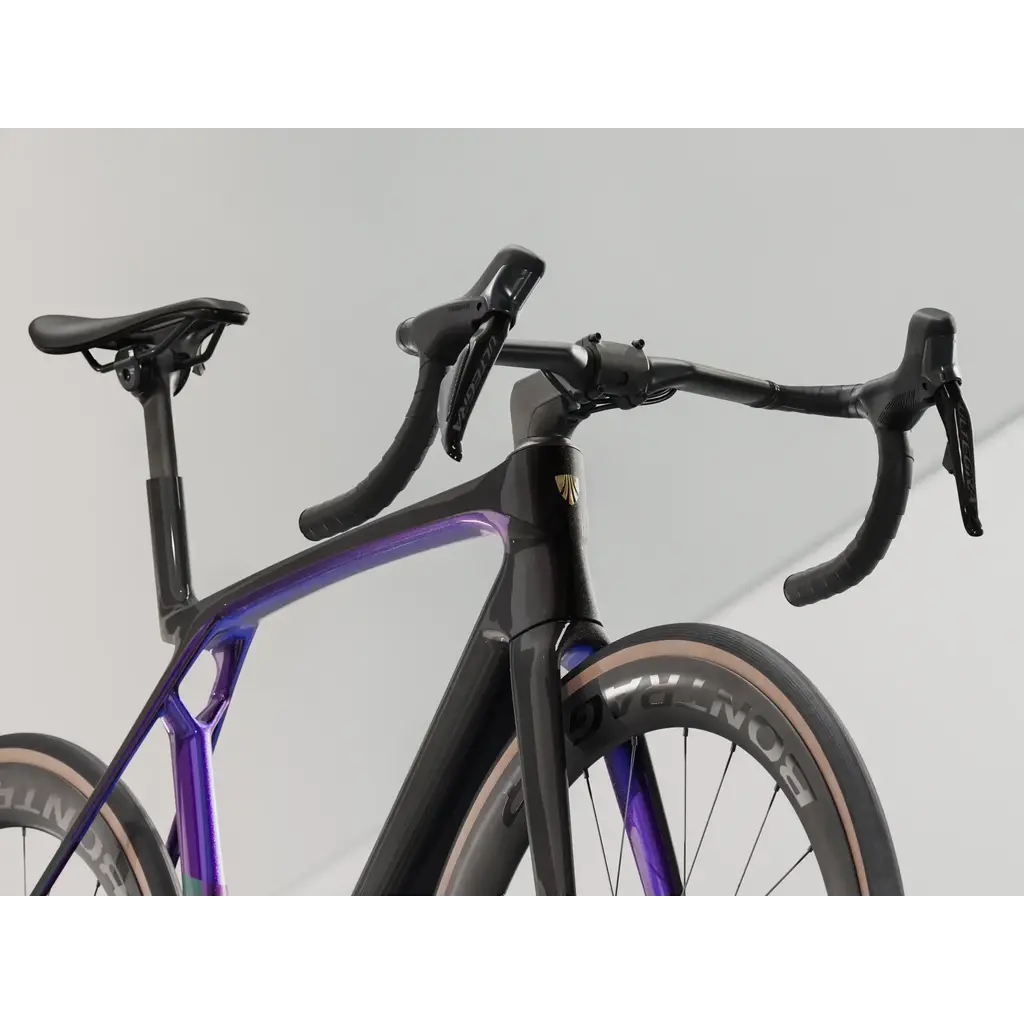

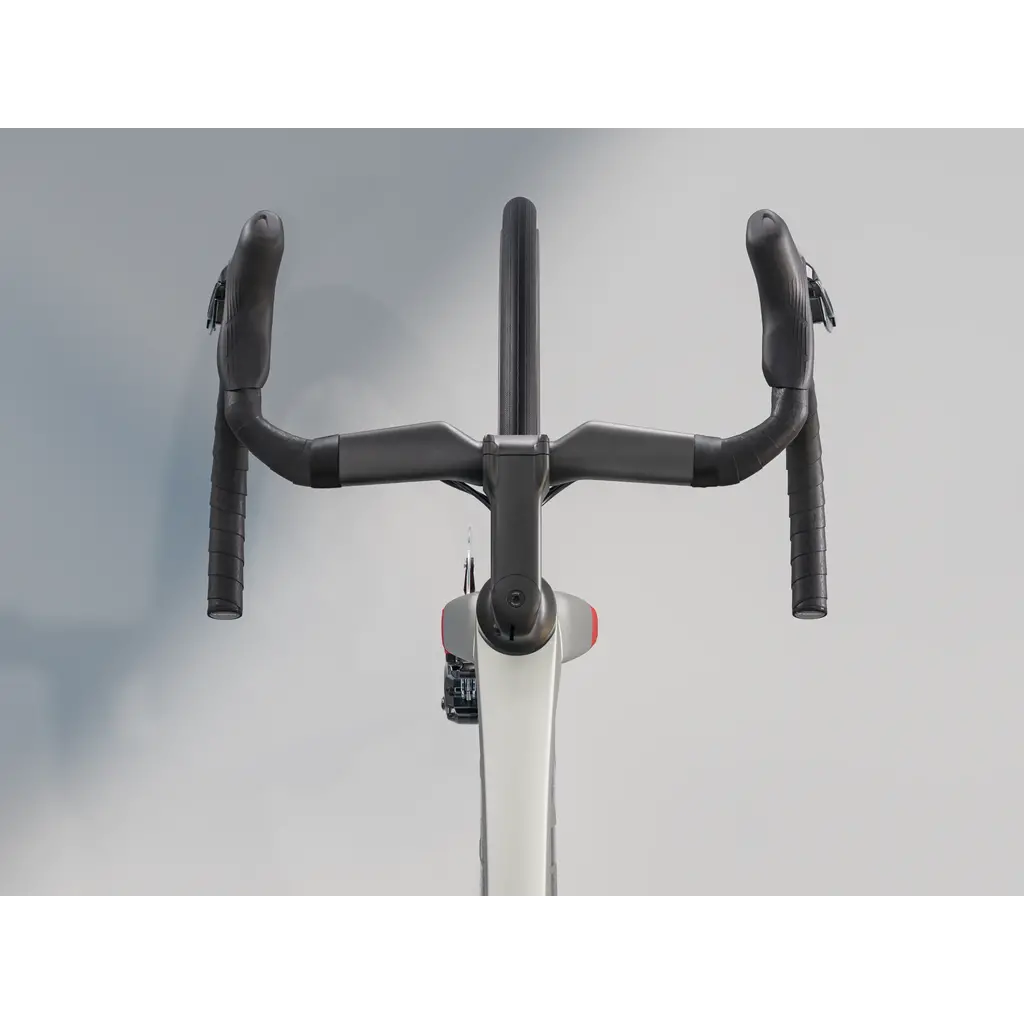

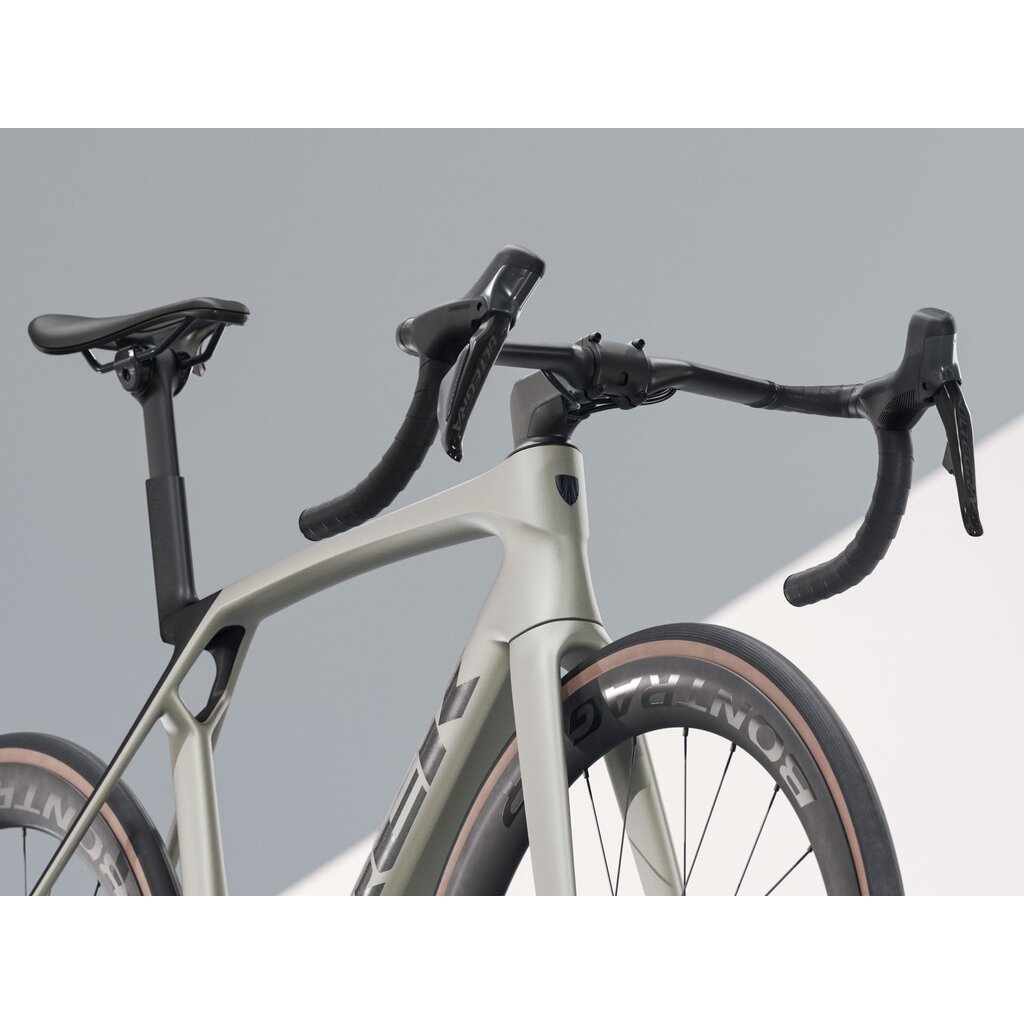

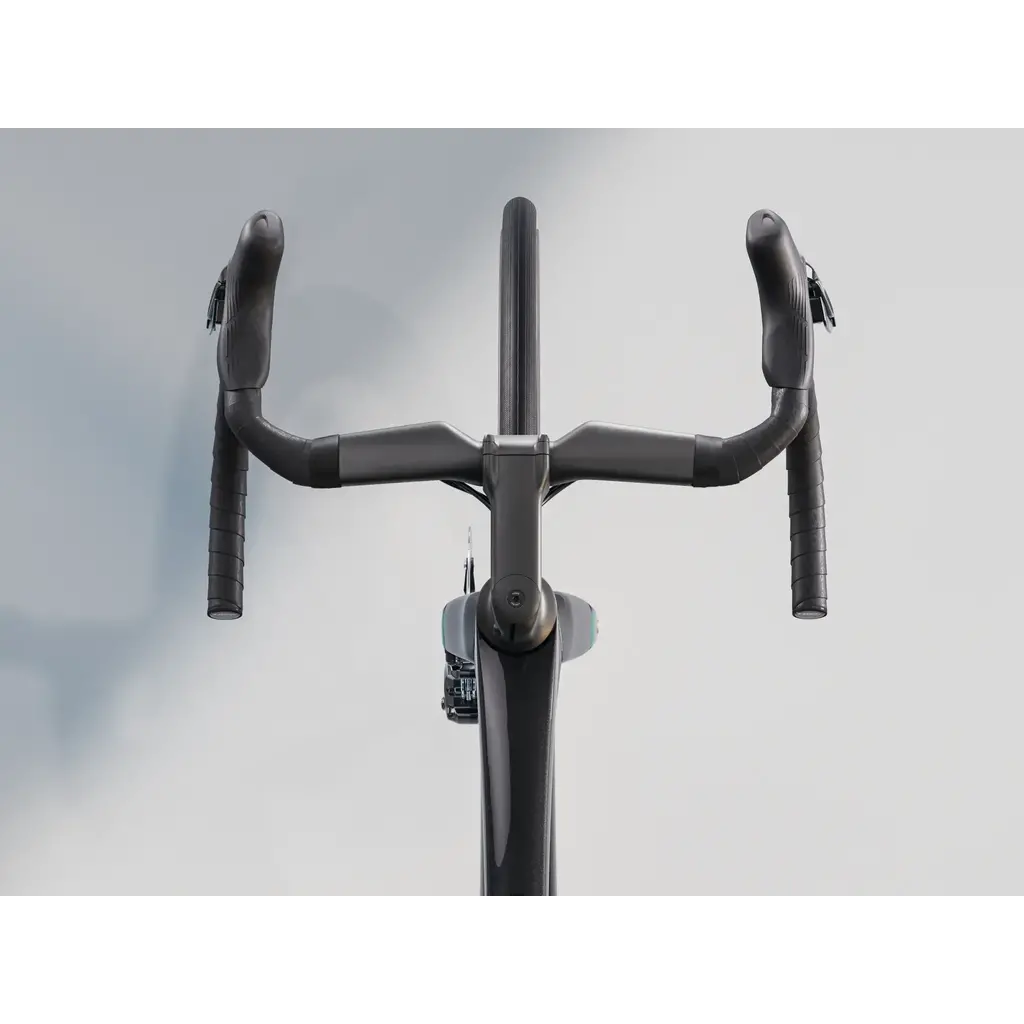

| *Handlebar | Size: XS Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width |
| Size: S Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width |
|
| Size: M, ML, L Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 42 cm width |
|
| Size: XL Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width |
|
| *Stem | Size: XS Trek RCS Pro, -7-degree, 80 mm length |
| Size: S, M Trek RCS Pro, -7-degree, 90 mm length |
|
| Size: ML, L Trek RCS Pro, -7-degree, 100 mm length |
|
| Size: XL Trek RCS Pro, -7-degree, 110 mm length |
|
| Brake rotor | Shimano CL800, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
