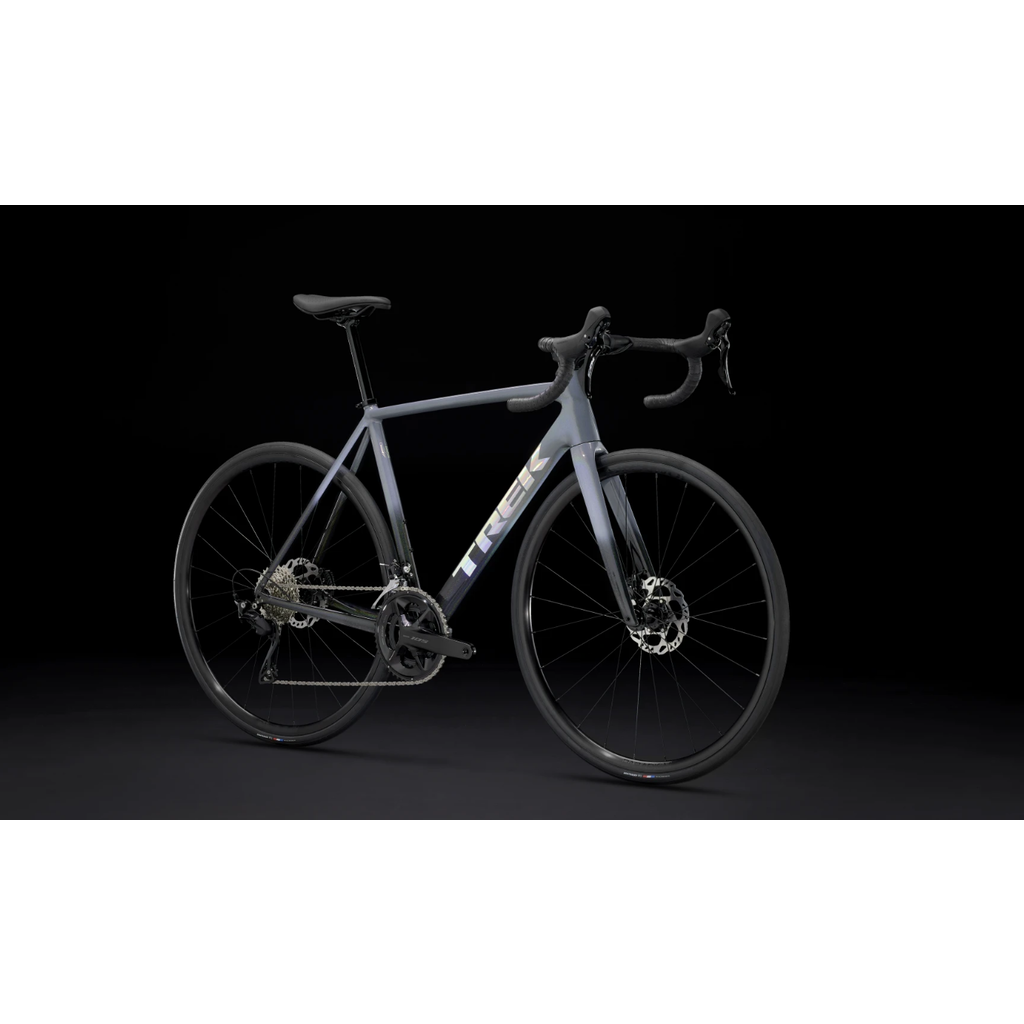

2024 Trek Émonda ALR 5

$3,499.99

The Émonda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike and place it at an alloy price point.

Out of stock

Click & Collect Pay Online, Pick up in-store

Postage Standard & Express Delivery Available (Excluding Bikes, Indoor Trainers & Racks)

Details

Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

Frameset

Frame	Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
Fork	Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle

Weight

Weight	56 - 9.17 kg / 20.22 lbs (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain

Shifter	Shimano 105 R7120, 12-speed
Front derailleur	Shimano 105 R7100, braze-on, down swing
Rear derailleur	Shimano 105 R7100, 36T max cog
*Crank	Size: 50, 52 Shimano 105 R7100, 50/34, 170 mm length
	Size: 54, 56, 58 Shimano 105 R7100, 50/34, 172.5 mm length
	Size: 60 Shimano 105 R7100, 50/34, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12-speed
Chain	Shimano SLX M7100, 12-speed
Max. chainring size	1x: 48T, 2x: 53/39 (Shimano), 48/35 (SRAM)

Wheels

Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front	Bontrager Switch thru-axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
Max tyre size	28mm

Components

*Saddle	Size: 50, 52 Verse Short Comp, steel rails, 155 mm width
*Saddle	Size: 54, 56, 58, 60 Verse Short Comp, steel rails, 145 mm width
Seatpost	Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar	Size: 50 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
	Size: 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
	Size: 54, 56, 58 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
	Size: 60 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 60 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

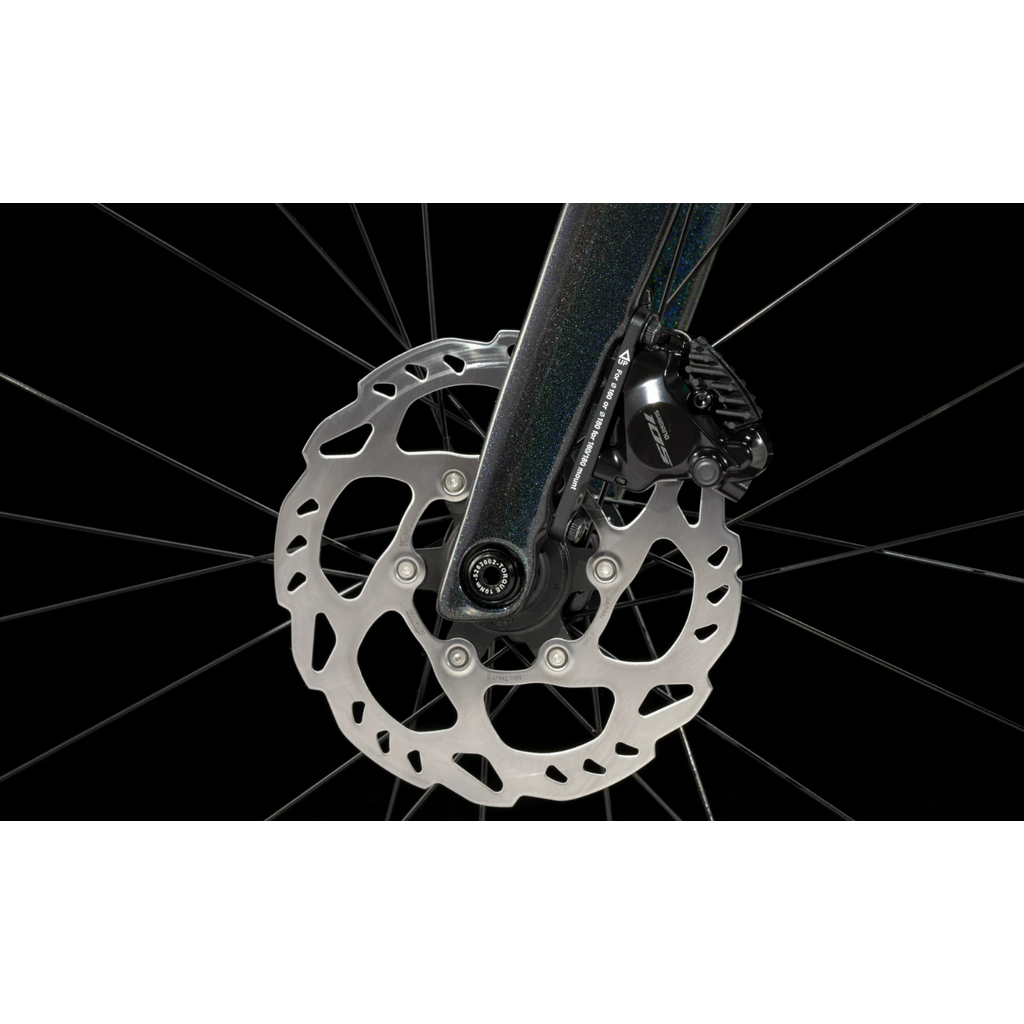

Brake	Shimano 105 hydraulic disc
Brake rotor	Shimano RT70, CentreLock, 160 mm
Rotor size	Max brake rotor sizes: 160 mm front and rear
